Fiber Optic Distribution cabinet –FDH48A IP30 Max:48 Splices + 48 SCAPC Adapters
Fiber Distribution Hub for FTTX
Fiber Distribution Hub –FDH48A
Products Profit:
Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipment of fiber optical cable for fiber patching, Splicing, Fiber splitting and management.
OMC’s FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTX construction, ODN construction, LAN, Metro network and CATV.
Features:
Wall-mountable installation design
Integrated with splice cassette and cable management elements
Manages large quantities of fiber with high density design
Easy to maintain and extend fibers in the future
Fiber bend radius control more than 40mm
Maximum capacity up to 32 ports
Efficient space for cable management and storage
Dust and splash-proof level reaches IP30
ABS cassette type PLC Splitter can be placed for distribution
Products Specification:
| Width | 450mm |
| Height | 180mm |
| Depth | 150mm |
| Net Weight | 3.2kg |
| No. of Splice Tray | 4 |
| Protection Grade | IP30 |
| Maximum Capacity | 48 Splices + 48 SCAPC Adapters |
| No. of Splitters | Maximum 4PCS 1:16 |
| Color | RAL7035 |
| Working Temperature | -25°C ~55°C (5 to 95% Relative Humidity) |
Advantage:
Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system
Possible scalability depending on the number of operators addressing the building
Optical cable access left with lashing system
Standardized dimensions, according to TELEFONICA recommendations
Application:
FTTX Project
ODN system
Data center
PON system

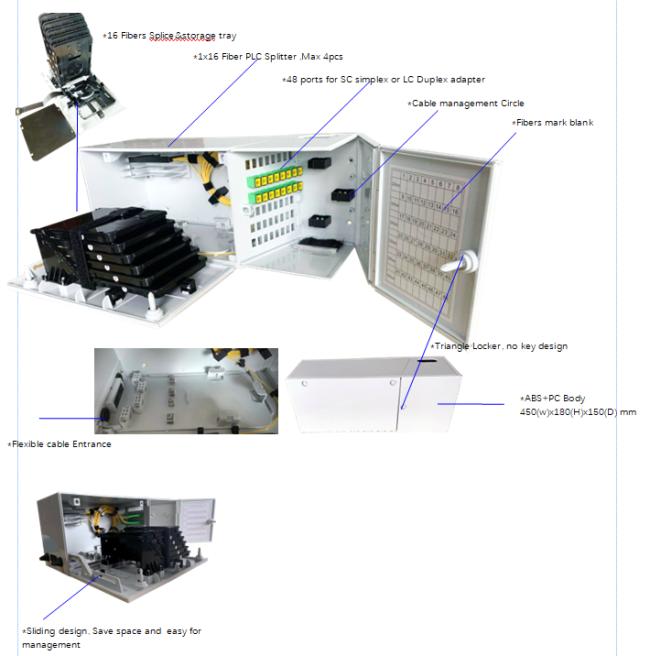

Products Details:

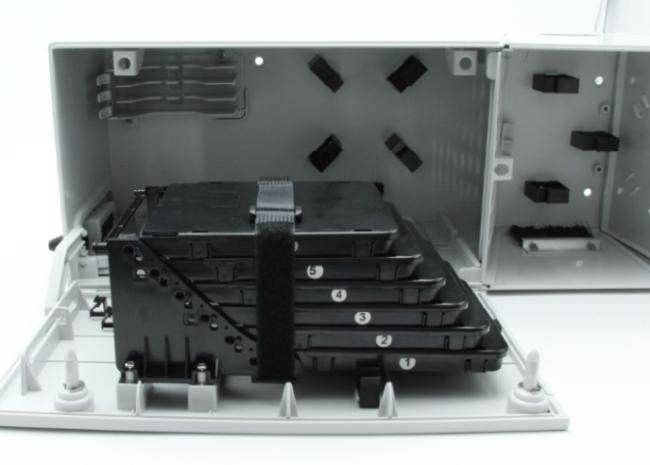

Product detail picture:
