8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB

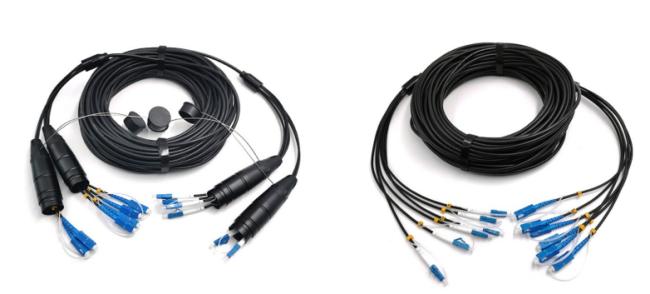

Armored Fiber Patch Cord TPU Jacket
Armored fiber patch cords can be laid in all kinds of harsh environments. It has stainless steel tube to protect optical fibers and provides better security for the whole system.
Features:
Flexible stainless steel tube to protect optical fibers from damage
Good performance of torsion, tensile strength, pressure, and anti-rodent
Various connectors are available complying with international standard, such as
FC/SC/ST/LC, etc
Applications:
Fiber optic sensing / Telecommunication networks
CATV / LAN & WAN / Test Equipment / National defense
FTTX, FTTH(Fiber to the Home) / Oil & Ga,Broadcast & Industrial
Performance:
| Item | Data |
| Fiber Count | SX DX 4C 6C 8C 12C 24C |
| Connector | LC /SC /FC /ST /Waterproof connectors,etc |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+85°C |
| Storage temperature | -40°C~+85°C |

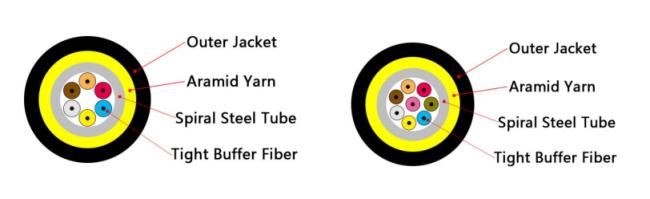

l Cable Structure:
- 8C: 8×Tight Buffer(0.6mm)+Spiral Steel Tube+Kevlar+TPU Jacket OD=5.0mm
| Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
| Short term | Long term | Singlemode | Multimode | |||||
| 8 | 5.0±0.2 | 37kg | 1200N | 600N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | 20D | -40℃～+85℃ |
| Cable Count | OD (mm) | Weight | Tensile strength | General attenuation | Minimal Bending radius | Storage temperature | ||
| Short term | Long term | Singlemode | Multimode | |||||
| 8 | 5.5±0.2 | 40kg | 1200N | 600N | 1310nm ≤0.4dB/km | 850nm ≤3.0dB/km | 20D | -40℃～+85℃ |
