1310/1550nm Plug - In Fixed Optical Attenuator

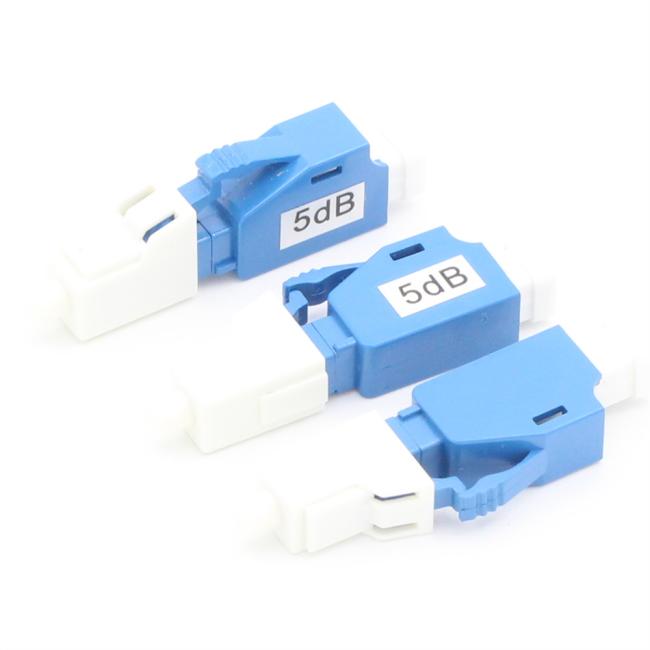

LC SM 1310/1550nm Plug-in Fixed Female To Male Attenuator
Fixed Female to male attenuatorsfrom OMC offer defined control of optical signals in both integrated and add-on products.
Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requirement.These precise attenuation levels provide for highly accurate performance.
OMC fixed attenuators are used in applications where a pre-determined amount of light loss is specified. Though its applications range widely, fixed attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.
Details
| Fiber Connector | LC/UPC | Connector Gender | Fixed Male to Female |
| Transfer Mode | Singlemode | Attenuation | 5dB |
| Operating Wavelength(nm) | 1260~1620(SM) | Attenuation Accuracy | ±0.5dB |
| Return loss | ≥ 55dB | Max Optical Input Power | 200mW |
| Operating Temp Range | -40~80°C | Polarization Dependent Loss | ≤ 0.2dB |
| Storage Temp Range | -40~85°C | Humidity | 95%RH |
Features & Benefits
|
Fully compatible with LC fiber optic connectors Precise attenuation values Industry standard attenuation levels Low PDL and insertion loss Precision polishing for reduced back reflection Highly Reliable Physical Contact Connectors Compartmentalized case provides safe component storage and simple organization Small, durable case for easy portability RoHS compliant |
Applications
- DWDM applications
- Test & measurement
- Optical sensors
- Telecommunications applications
Packaging & Delivery
| Packaging Details | 20 pieces in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too. |
|---|---|
| Delivery Time | Shipped in 3 days after payment |
