FTTH Handheld Fusion Fiber splicer OMCFS - 115 Fusion splicer with SOC fixture 4 motors Fiber Optic Splicing Machine
FTTH Handheld Fusion Fiber splicer OMCFS - 115 Fusion splicer with SOC fixture 4 motors Fiber Optic Splicing Machine
OMCFS-115 Handhold Fusion Splicer, with high performance price ratio, is the main product of OMC Company. With SAMLL& smart appearance, reliable quality, OMCFS-115 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of FTTX project.

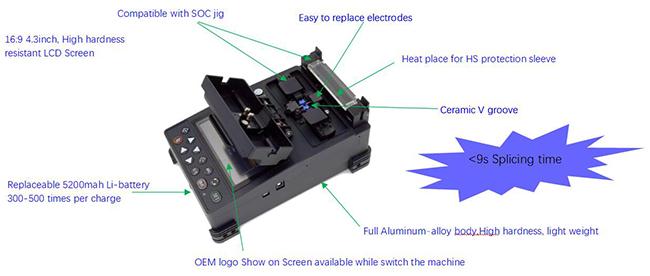

Features
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 150 X and Y view
4.3 inch 16:9 digital high-quality LCD screen, observe X and Y view at same time
Three in one fixture, splicing single fiber, cable indoor and pigtail
Available: OEM SERVICE.
Available language: English, Russian, Spanish, Portuguese, Italian, French, German
Specifications
| Model | OMCFS-115-1 | OMCFS-115-2 |
| Splicing Fiber Type | SM, MM, DS, NZDS Fiber&Cables | SM, MM, DS, NZDS Fiber&Cables and SC Fusion splice-on Connector |
| Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) | |
| Available language | English, Russian,Spanish,Portuguese,Italian,French,German | |
| Splicing Mode | Manual, Half Auto, Auto | |
| Fiber Alignment | Core to Core Alignment by PAS technology | |
| Splicing Time | ≤9s | |
| Heat Time | ≤30s | |
| Cleaved Length | 8～16mm | |
| Fiber Image/ Magnification | 300/150 | |
| View Display | 4.3 inch (16:9) digital high quality LCD screen | |
| Tension Test | Standard 2N (option) | |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve | |
| Battery Capacity |
5200mAH/56,2Wh, 300 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
|
| Battery Life | Cycling charge 300-500 times, easy to replace battery | |
| Electrodes Life | 3000, easy to replace electrodes | |
| Power Source | ≤20W | |
| Interface | USB Convenient data download and software update | |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night | |
| Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A | |
| Operating Condition |
0-5000m above sea level, Temperature: -10-60℃, Humidity:0～95%RH (No dew) |
|
| Weight | 1.6KG (including battery), 1.1KG (excluding battery) | |
| Dimension (LxWxH) | 200mm(L)×130mm(W)×98mm(H) | |

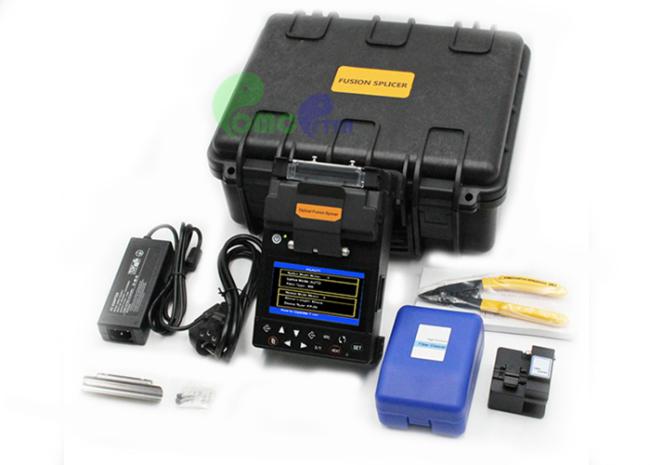

Package:
| No | Name | Qty |
| 1 | Fusion Splicer (OMCFS-118) | 1 set |
| 2 | Fiber Cleaver | 1 pc |
| 3 | Fiber Stripper | 1 pc |
| 4 | AC Adatpor | 1 pc |
| 5 | Li Battery | 1 pc |
| 6 | Charger | 1 pc |
| 7 | Spare Electrodes | 1 pair |
| 8 | Cooling Tray | 1 pc |
| 9 | Carrying Case | 1 pc |
SC FIBER FUSION-ON CONNECTOR
SOC Fixture to splice SC connector

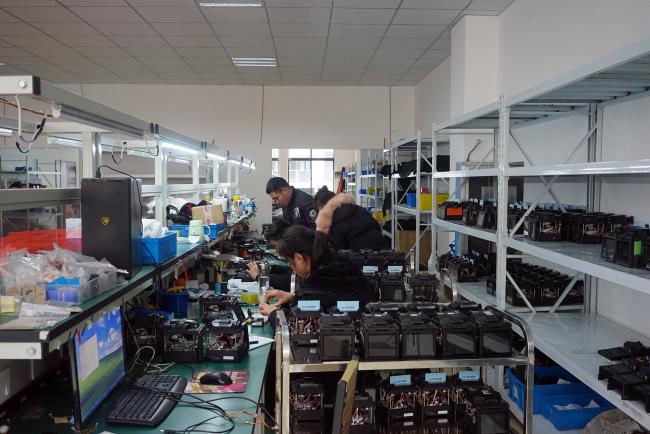

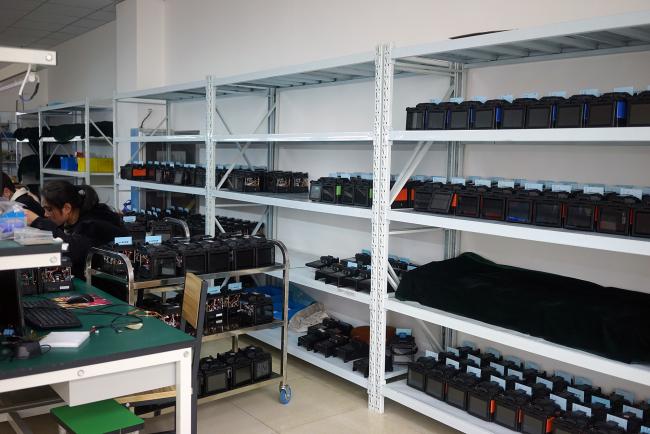

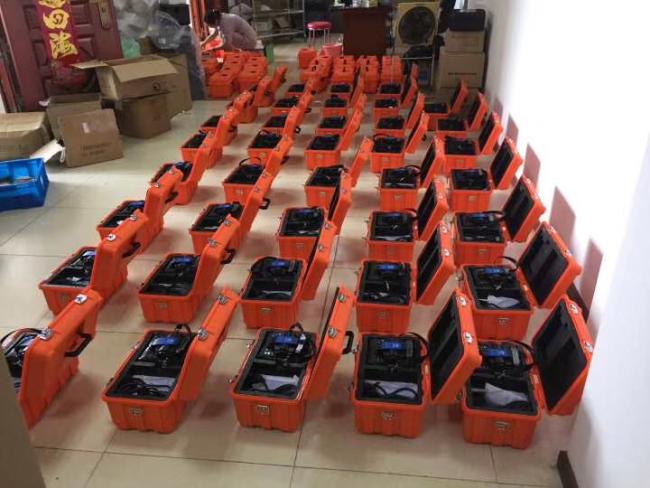

Our Splicer workshop
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
