12F SM MPO Trunk Cable 9 / 125μm Female to Female Connector 3.0mm LSZH Round cable with 3M Polarity B
12F SM MPO Trunk Cable 9 / 125μm Female to Female Connector 3.0mm LSZH Round cable with 3M Polarity B
Designed for 40G LR4 PSM, 40G QSFP+ PLR4 optics direct connection and high-density data center.
MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel.
The merits of MTP/MPO Patch cable/trunk cable generally include:
High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.
Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
MPO Fiber Patch cable is terminated with MPO connector on both ends. All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO products’ Details& Standard:
| Connector | Reference | Housing Details |
| MPO Single Mode | IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode | IEC 61754-7 |
OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
Cable Parameters-12F Microfiber cable
| Fiber Count | OD(mm) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load(N/100mm) |
Minimum Bending Radius(MM) |
| 12 | 3.0±0.15 |
Short-term: 180； Long-term: 90 |
Short-term: 500； Long-term: 150 |
Static:10D Dynamic:20D |
MPO Patch cable/trunk cable ’s Specification:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
|
Insertion loss (MPO) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) | Minimum | Maximum | ||
| Radius of curvature (mm) | ROC-X(ABS) | 2000 | ||
| ROC-Y(ABS) | 50mm | |||
| Angle | Angle-X | -0.2° | -0.2° | |
| Angle-Y | APC | 7.85° | 8.15° | |
| PC | -0.2° | -0.2° | ||
| Fiber height (nm) | 1000nm | 3500nm | ||
| Max.DH.All Fiber: | -300nm | 300nm | ||
| DH.Adj: | -300nm | 300nm | ||
| DH.Ave Fiber: | -300nm | 300nm | ||
| Core Dip: | SM | N/A | N/A | |
| MM | -200nm | 300nm | ||

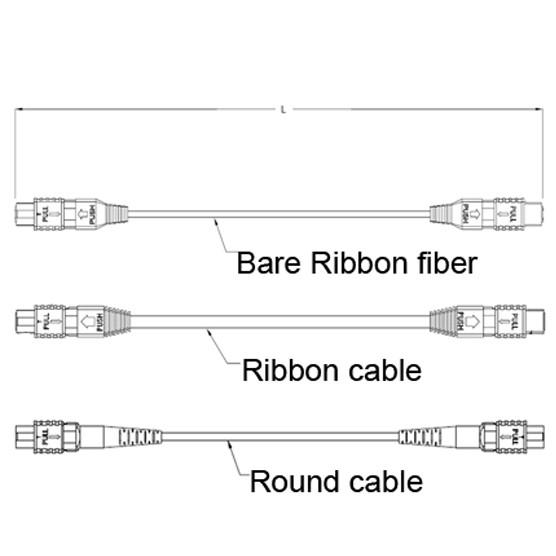

Cable Drawing
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Pre-terminated MTP Technology-Polarity
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
AVAILABILITY:
- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MTP Loopback available
Highlights : Push-pull tab MTP connector is easy to install and remove with one hand
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
Packaging & Delivery:
Packaging Details
1.Fumigation of wood drum, plywooden drum or wooden drum
2.carton box
3.customized
Port: Shenzhen
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
