Duplex Twin Flat SM 2F 3.1*5.2mm LSZH Yellow Indoor Fiber Cable​

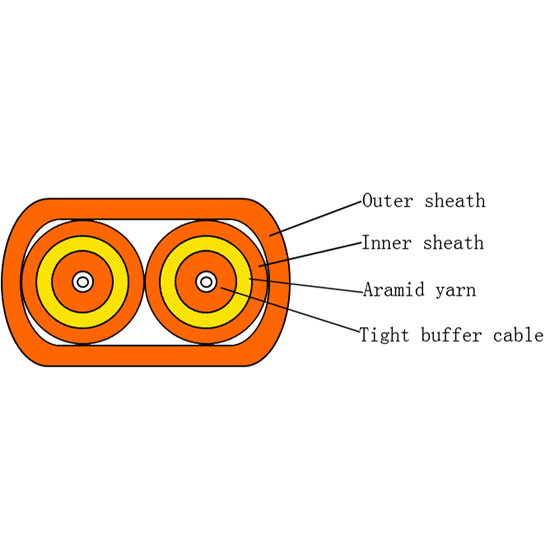

Duplex flat cable use 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. The cable is completed with a figure 8 PVC or LSZH jacket.

Standards

Comply with standard GR-409, IEC 60794-2-10/11, meet the requirements of UL approval for OFNR .ORNP.

Characteristics

• Tight buffer and Loose buffer fiber easy for stripping
• Excellent flame-retardant performance
• Figure 8 structure facilitate embranchment
• Aramid yarn as strength member make cable have excellent tensile strength
• Adopt strict process and raw materials control to guarantee the lifespan of 15 years
• The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment
• All dielectric structure protect it from electromagnetic influence

Specification

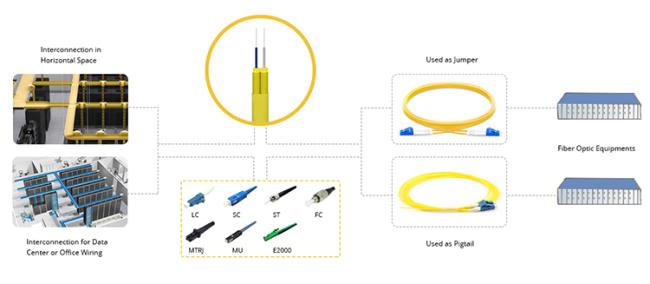

Application:

Used as jumpers or pigtails for data center applications

Installed within walls, under raised floors, and in air-return spaces

Interconnection in horizontal spaces between fiber optic equipments

Ideal Solution by Using Interconnect Cable

Interconnect cables are designed for indoor network connections. They are suitable for using as jumpers or pigtails in internal point-to-point links.

Packaging & Labeling

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.
