Stranded Loose Tube No-metallic Strength Member -Armored CableⅡ GYFTA53 Outdoor Fiber Cable

Product details

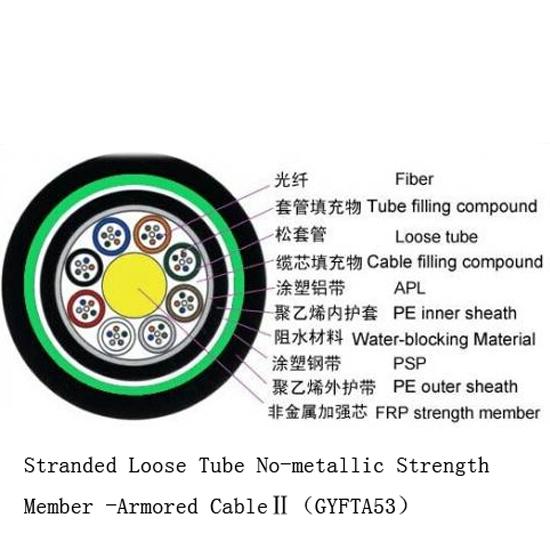

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Single Fiber Reinforced Plastic as the central strength member

Loose tube filling compound

100% cable core filling

APL moisture barrier

PSP enhancing moisture-proof

Water-blocking material

Standards: IEC 60794-1

Technical Parameters.

Note:

Suffix X denotes fiber type.

The nominal value of the PE outer sheath thickness is 1.8mm. The nominal value of the PE inner sheath thickness is 0.8mm.

Package

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.
