Crush Resistance Outdoor Fiber Cable , Flexible Outdoor Armored Fiber Optic Cable
Unitube Armored Cable GYXS/GYXTW Outdoor Fiber Cable
Product details

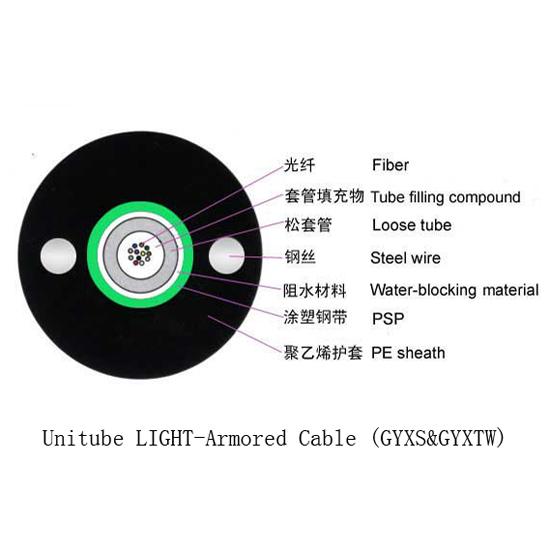

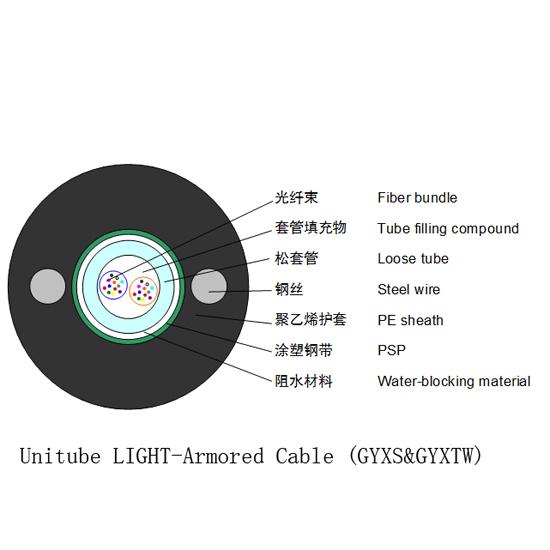

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Technical Parameters.
| Part No. | Fibers |
Cable OD (mm) |
Weight Kg/km |
Tensile strength Long term/short term (N/1m) |
Crush resistance Long term/short term (N/1m) |
Bending Radius Static/Dynamic (mm) |
| GYXTW-2~12X | 2~12 | 8.9 | 100 | 600/1500 | 300/1000 | 10D/20D |
| GYXTW-2~12X | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-14~18X | 14~18 | 12 | 147 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-20~36X | 20~36 | 12 | 150 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-38~48X | 38~48 | 15 | 207 | 1000/3000 | 1000/3000 | 10D/20D |
Note: Suffix X denotes fiber type.
The nominal value of the PE sheath thickness is 0.8mm.
Package
OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.
