4F - 12F Ribbon fanout 900um Fiber optic pigtail LC OS2 Single mode with 0.9mm tail 0.5M LSZH yellow with OEM service
4F - 12F Ribbon fanout 900um Fiber optic pigtail LC OS2 Single mode with 0.9mm tail 0.5M LSZH yellow with OEM service

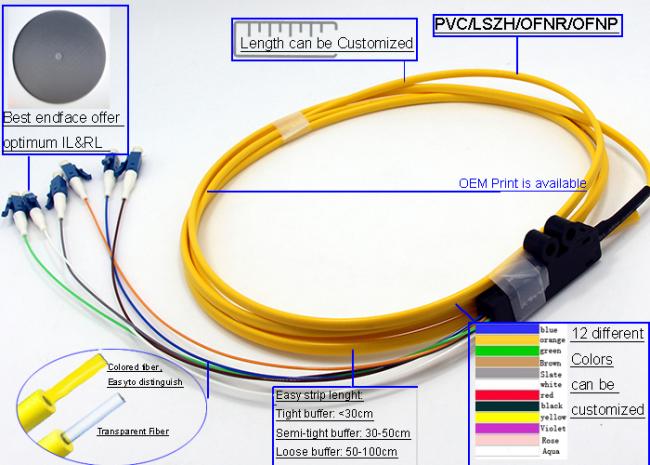

4/8/12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail. The fanout cable is 0.9 tight buffer cable. Meets Telcordia GR-326 Core and ROHS requirements. Pigtails are used for splice applications when terminating outside plant cable. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.
Features:
- The connector could be SC,FC,LC,ST,MU,E2000 etc.

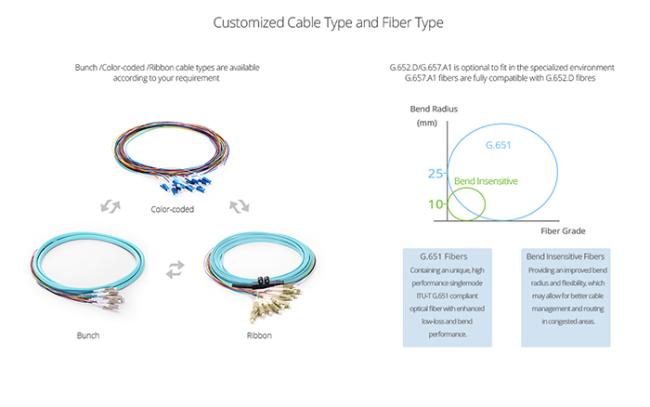

- The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
- Fiber count: 4.6.8.12.
Optical Specification
| Connector A | LC | Connector B | Unterminated |
| Fiber Mode | 9/125μm | Fiber Count | 12 |
| Polish | UPC | Fanout Cable Diameter | 0.9mm |
| Jacket Material | PVC/LSZH | Jacket Color | Yellow |
| Wavelength | 1310nm/1550nm | Durability | >1000 Times |
| Insertion Loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return Loss | ≥50dB | Vibration | ≤0.2dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| PC End-face | APC End-face | ||
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 50 nm | ||
| Angular Offset | ------ | 8°± 0.2° | |
- Clean and Scratch-Free End Face
- Proportional geometric test is applied to the normal production.
- 100% interferometer check is available under special requirement.
Physical Information:
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm

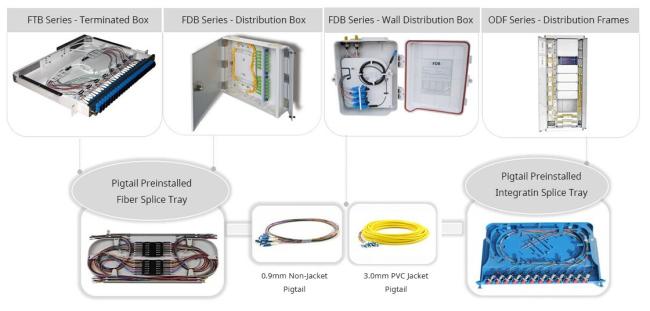

Application:

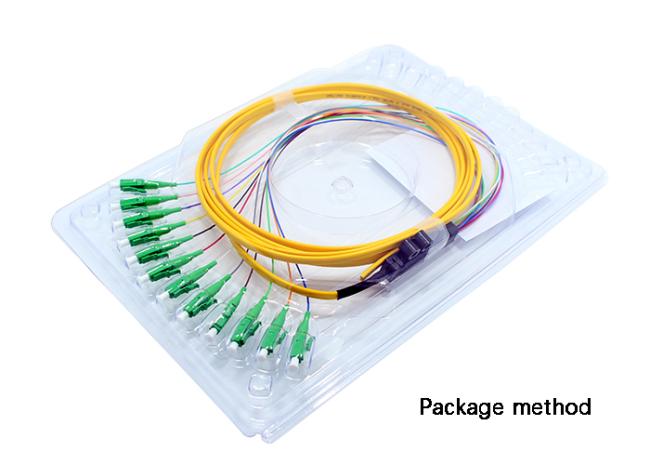

Package:

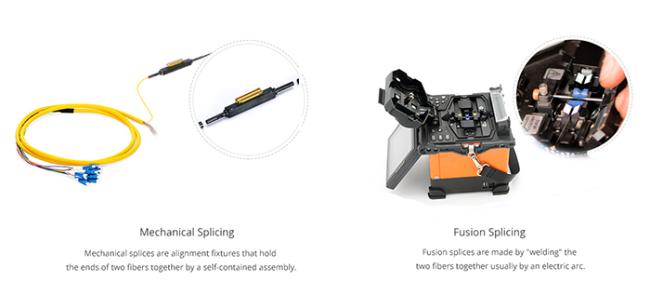

Two Important Methods for Fiber Optic Pigtail Splicing
Fiber optic pigtail assemblies are utilized in terminating fiber optic cables via fusion or mechanical splicing.
