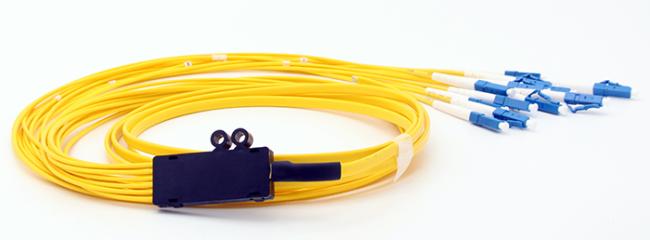

12F Ribbon Fanout 2.0mm Tail 9 / 125μm LC UPC Fiber Optic Pigtail With OS2 G652D SM LSZH Jacket Yellow
12F Ribbon Fanout 2.0mm Tail 9 / 125μm LC UPC Fiber Optic Pigtail With OS2 G652D SM LSZH Jacket Yellow

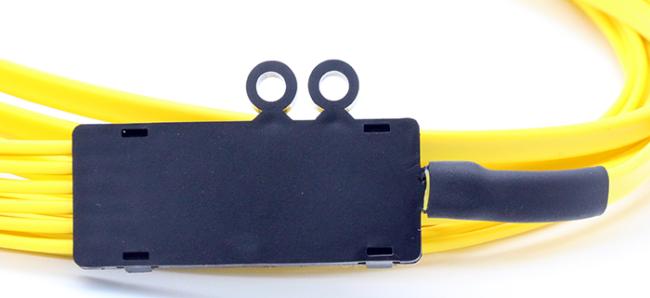

12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900μm or 2.0mm cable.
OMC’s 4-12F Ribbon Fan-out Fiber Optic Pigtail are available in both single and multimode versions with either APC or UPC polish types.
All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.
Connector’s Standard:
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Optical Specification
| Connector A | LC | Connector B | Unterminated |
| Fiber Mode | 9/125μm | Fiber Count | 12 |
| Polish | UPC | Fanout Cable Diameter | 2.0mm |
| Jacket Material | PVC/LSZH | Jacket Color | Yellow |
| Wavelength | 1310nm/1550nm | Durability | >1000 Times |
| Insertion Loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return Loss | ≥50dB | Vibration | ≤0.2dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |

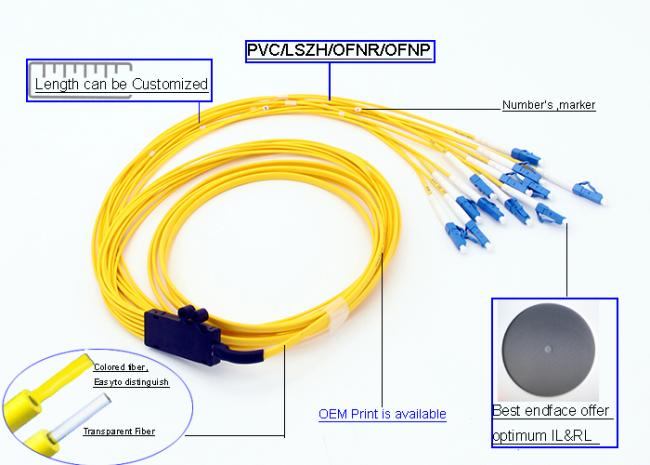

Features:
- The connector could be SC,FC,LC,ST,MU,E2000 etc.
- The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
- Fiber count: 4.6.8.12.
Geometric Specification (only for 3D interferometer tested)
| PC End-face | APC End-face | ||
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 50 nm | ||
| Angular Offset | ------ | 8°± 0.2° | |
- Clean and Scratch-Free End Face
- Proportional geometric test is applied to the normal production.
- 100% interferometer check is available under special requirement.
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||

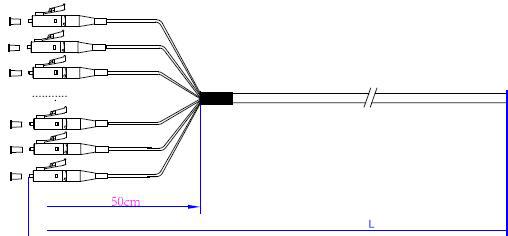

Length tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Application:
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on
goods Qty . Packing can be customized.
Two Important Methods for Fiber Optic Pigtail Splicing
Fiber optic pigtail assemblies are utilized in terminating fiber optic cables via fusion or mechanical splicing.
