1200g - 1500g Fiber Optic Enclosures Providing Mechanical Strength Continuity

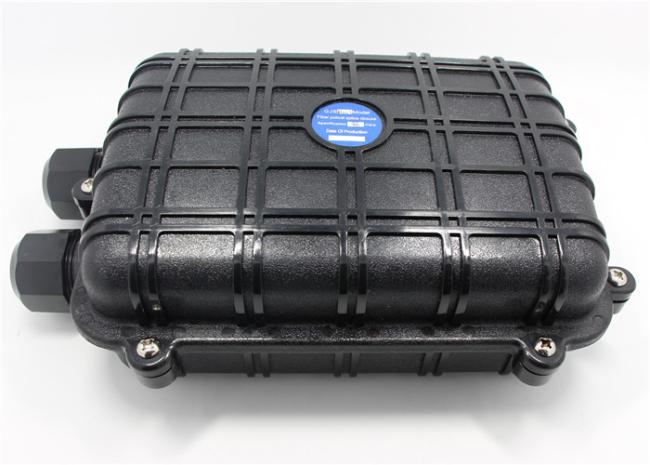

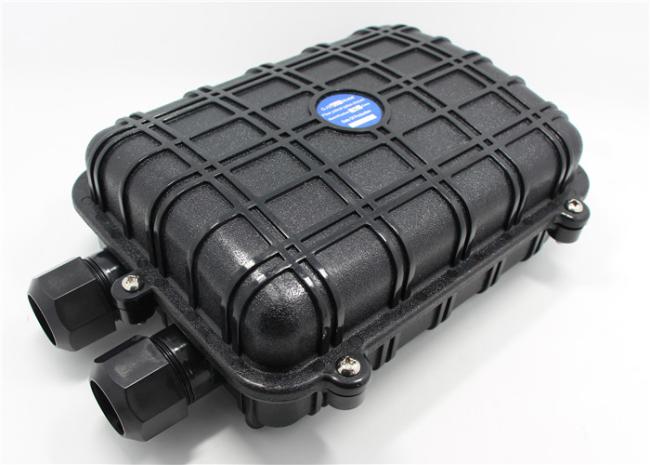

H003 Inline type 4 port Fiber Optic Joint Closure
FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.
OMCH003
1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial and wall-mounting. The ambient temperature ranges from -40 to 65℃.
2. Basic structure and configuration
2.1 Dimension and capacity
| Outside dimension (LxWxH) | 280x200x90 (mm) |
| Weight (excluding outside box) | 1200g-1500g |
| Number of inlet/outlet ports | max. 4 pieces |
| Diameter of fiber cable | Φ8—Φ14 (mm) |
| Capacity of FOSC | Bunchy: 6—96 (Cores) |

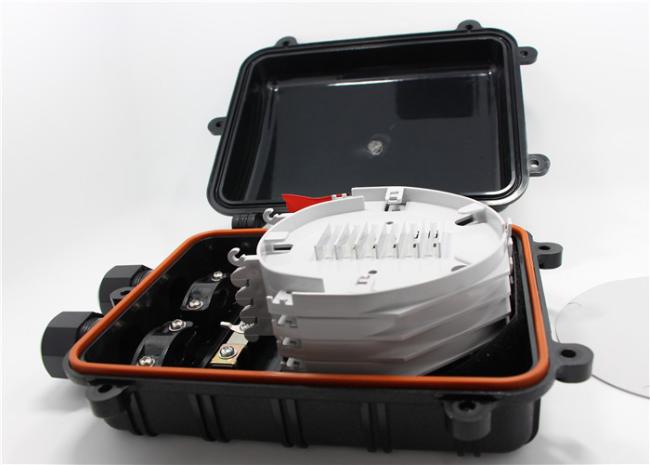

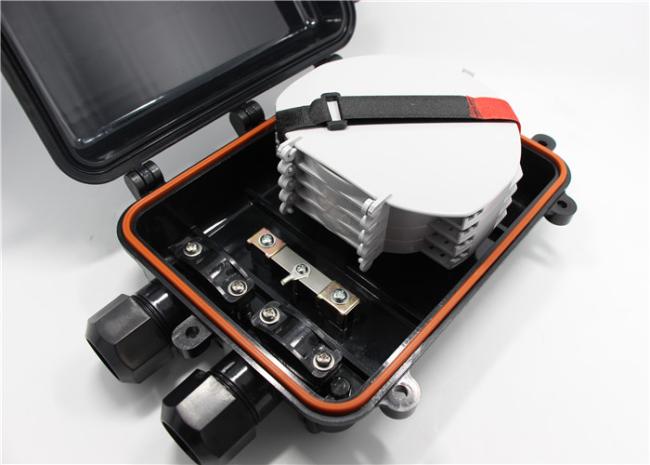

2.2 Main components
| No. | Name of components | Quantity | Usage | Remarks | |
| 1 | Housing(bottom) | 1 set | Protecting fiber cable splices in whole |
Internal diameter: 205*146(mm) |
|
| 2 | Housing(cover) | 1 set | Protecting fiber cable splices in whole |
Internal diameter 205*146(mm) |
|
| 3 |
Fiber optic splice tray (FOST) |
Max 8 trays (bunchy) or 6 trays(ribbom)
|
Fixing heat shrinkable protective sleeve and holding fibers | ||
| 4 | Integrated seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | ||
| 5 | Port plug | 6 pieces | Sealing empty ports | ||
| 6 | Fixed bolt | 1 set | Fixing the housing | ||
2.3 Main accessories and special tools
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 7 | Abrasive cloth | 1 piece | Grind the fiber | |
| 8 | Labeling paper | 1 piece | Labeling fiber | |
| 9 | Special wrench | 1 pieces | Fixing octagonal nut(plastic) | |
| 11 | Instruction manual | 1 pieces | standard installation |
2.4 package
| NO. | specification | carton size(cm) | capacity | N.W | Remarks |
| 1 | inner box | 29*21.5*11.3 | 1pcs | 1.3-1.6kg | Configuration as per weight |
| 2 | outer box | 61.5*37*46.5 | 12pcs | 15.6-19.2kg | Configuration as per weight |
