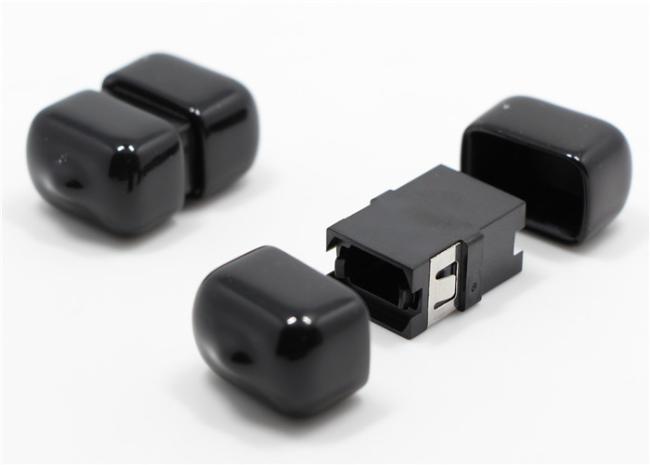

MPO Opposed Key, Up to Down SC footprint Fiber Optic Adapter One -Piece type Low IL < 0.2dB reduced Flange

MPO Opposed Key, Up to Down SC footprint Fiber Optic Adapter One -Piece type Low IL < 0.2dB reduced Flange

Our MPO adaptor provides alignment for a male and female MPO/MTP connector. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body. In the case of the MPO/MTP system the alignment is carried out by two small pins fitted to one of the connectors and the adapter is designed to support and lock the connectors. When joining MPO/MTP connectors, one connector must always be male with pins and one must be female without pins.

Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

MPO/MTP fiber optical adapter comply with industry standard TIA - 568C. 3-2008 (standard of fiber optical system) and YD/T1272.5-2009 (fiber optical connector part v: MPO style). Main raw material is environmental grade PVC.

OMC could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.

OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

Spec Performance:

Application:

Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point

Products detail

Application:

1. Patch panels, ODF and other optical connections.

2. Optical networks demarcation and monitoring point
