16 Cores White Fiber Termination Box , Fiber Distribution Box For PLC Splitter
Price:
Negotiable
MOQ:
5pcs
Delivery Time:
4-7 working days
Brand:
OMC or OEM
Product Description

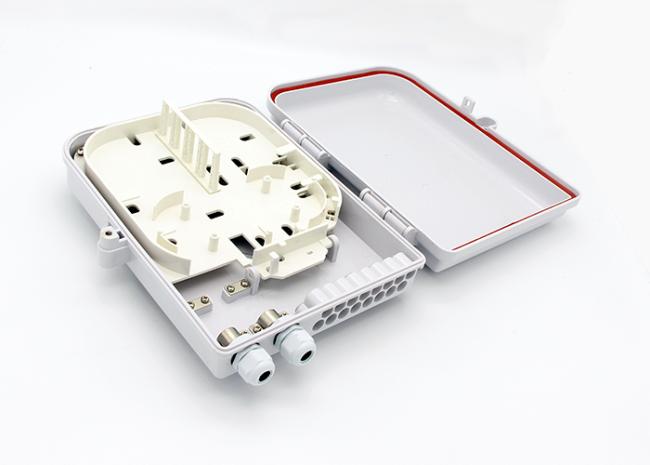

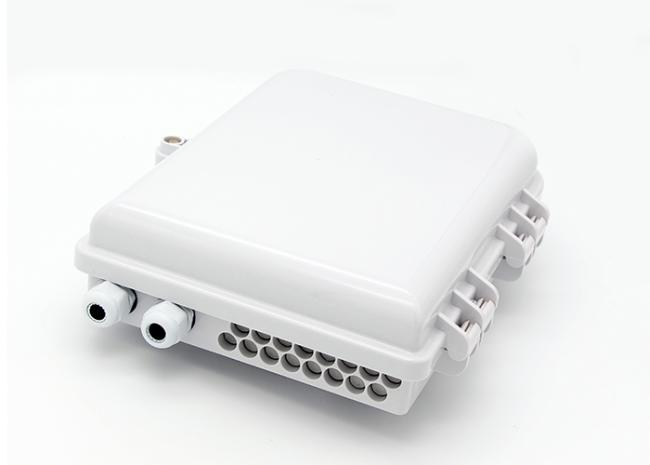

16 cores fiber terminal box / fiber enclosure / Fiber distribution box for SC , LC and suit for Fiber PLC splitter
FDB-16A is an excellent FTTH termination box with is designed for the FTTH optical network wiring, mainly for optical transmission terminal from end to end, fiber optic split; output function, effectively terminating, protection and management of fiber optic cable for the optic network. It’s the necessary equipment in the network transmission process.
Features
- Industry Standard User Interface, be made of high impact plastic.
- Can accommodate 1x8 & 1X16 PLC splitter.
- Anti-UV, Ultra violet resistant and rainfall resistant.
- Up to 16 FTTH drops.
- Wall and pole mountable.
- 2 inlet ports, 16 outlet ports.
- IP 55
Application
- widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Mechanical data
Material: PC
Dimensions
| Model | Capacity | Size |
| FDB-16A | 16 ports | 260mm(W)x320mm(H)x93mm(D) |
Packing information
| Model | N.W (kg/pcs) | Dimension of outer carton (mm) | G.W of outer Carton (kg/carton) | No of Products (pcs/carton) |
| FDB-16A | 1.85 | 550*355*620 | 16.1 | 10 |
