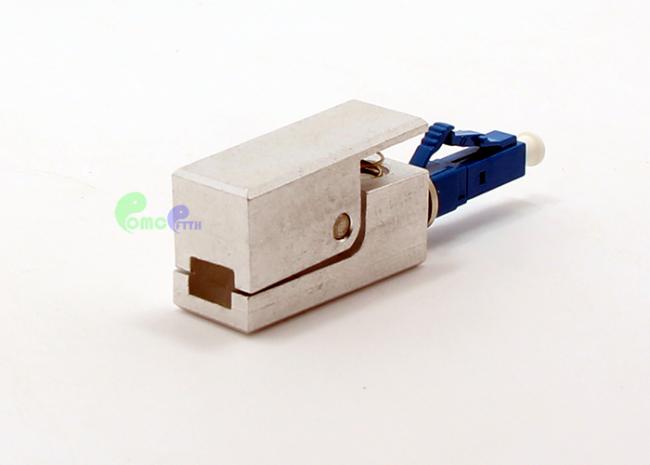

LC SM Bare Fiber Optic Adapter Square Type
LC SM Bare Fiber Optic Adapter Simplex IL< 0.2dB , Square type
Bare fiber adapters are used as the medium to link the bare optical fiber to fiber optic equipment. The bare fiber optic adapters have the bare optical fiber inside on one side; the other side of the adapter is a connector that can plug into the equipment. We supply SC,LC,FC and ST bare fiber adapters, they are used to quickly and easily terminate the fiber to the equipment.
Specification:
| Test item | Parameters | UPC | APC | MM PC |
| Insertion Loss |
SM: 1310nm/1550mm MM: 850nm/1300nm |
≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB | |
| Plug Service life | ≥1000times, <0.1 dB | |||
| Tensile Strength | ≥100N, <0.1 dB | |||
| Operation Temp | -40～+85 | |||
| Storage Temp | -40～+85 | |||
Applications:
Temporarily connactorizes bare fiber
Testing bare fiber, fiber on the reel, fiber before and after installation
Production line of fiber optic devices
For fast and temporary fiber optic connections in communication system
Temporary connections to OTDRs, Power Meters, Talk sets, Demo Equipment and Dark Fiber
