50 / 125 900um Ruggedized MPO Fanout Cable 24F With Wide Operating Temperature
24F Fanout MPO Male - LC OM4 50 / 125 900um LSZH 0.35M Trunk Cable Low Insertion Loss 0.35dB
24cores MPO-LC Fan-out 0.9mm 35cm patch cable for MPO LGX module are terminated with MPO and LC/SC/FC/ST connector on each end. All of OMC’s MPO Connectors are from Japan.
MPO products’ Standard:
- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C
Other connectors’ Industrial Standard:
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
MPO patch cord’s Specification:
| Spec items. |
Single mode( APC 8 degree polish) |
Multimode(PC Flat polish) |
|
Insertion loss(MPO) |
Standard loss≤0.7dB |
Standard loss≤0.5dB |
|
Insertion loss(LC) |
≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥55dB | ≥35dB |
|
Return loss(LC) |
APC≥60dB |
PC≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | ||
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | -0.2 | 0.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Max. Core Dip(nm) | -300 | 300 | |
| Fiber height(nm) | -300 | 300 | |
| ROC_X(abs)(mm) | 1000 | 3000 | |
| MPO APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | ||
| Angle_X(deg) | -0.2 | 0.2 | |
| Angle_Y(deg) | 7.8 | 8.2 | |
| Max.DH.All Fiber(nm) | -600 | 600 | |
| Max.DH.Ave(nm) | -300 | 300 | |
| Max.DH.Adj(nm) | -300 | 300 | |
| Fiberheight(nm) |
Cable Drawing(12cores for reference)
Application:

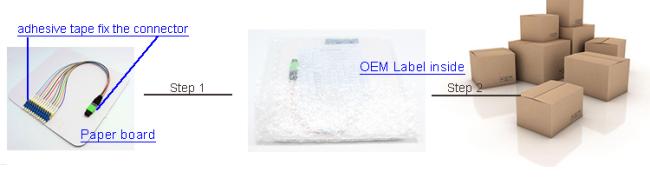

Package:
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
AVAILABILITY:
- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
