OM4 50/125μm Multi - Mode MTP Trunk Cable , 3.0mm Jacket OD MTP 12 Fiber Connector

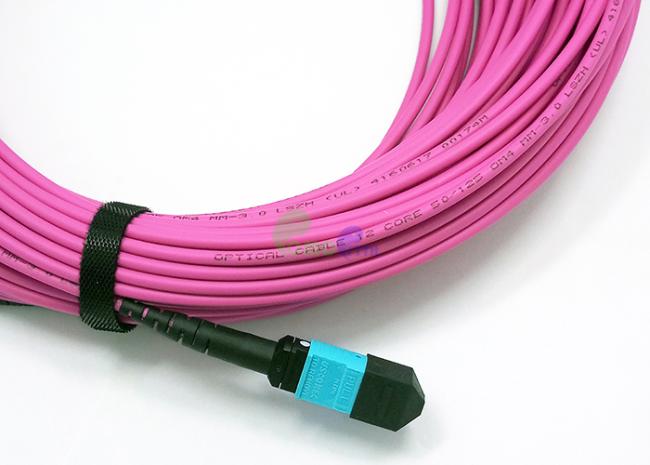

OM4 MTP trunk cable MTP APC male to MTP APC male OM4 50/125um 12F magenta LSZH Elite Type B​​, It designed for 40G QSFP+ PLR4 optics direct connection and high-density data center applications; The US Conec MTP connectors are fully compliant with the MPO standards.

MTP Fiber trunk cable are terminated with MTP connector on both end. All of OMC’s MTP Connectors are from US Conec. MTP trunk cable is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment

MTP products’ Standard:

• Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
• Structured cabling per TIA-568-C

Features

Low insertion loss, high return loss

MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies

Economical solution for mass-termination of fiber

Designed for low loss and standard loss SM and MM applications

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Good in repeatability and exchangeability

Cable drawing&Polarity

High light

Testing Equipment

Test Assured Program

3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
