LSZH Yellow Zipcord Fiber Optic Patch Cables SC To ST Multiple Length Optional

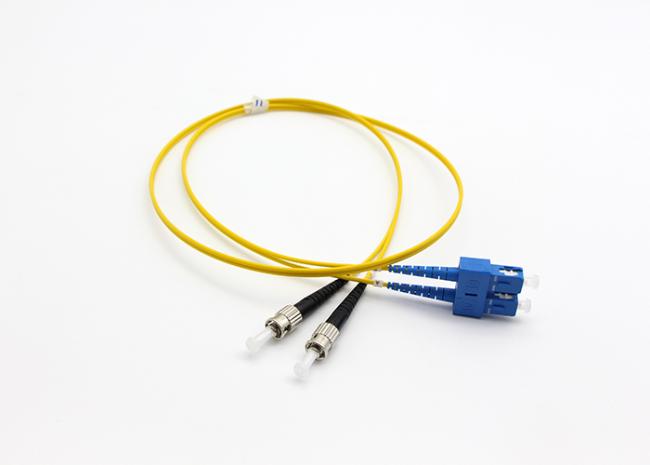

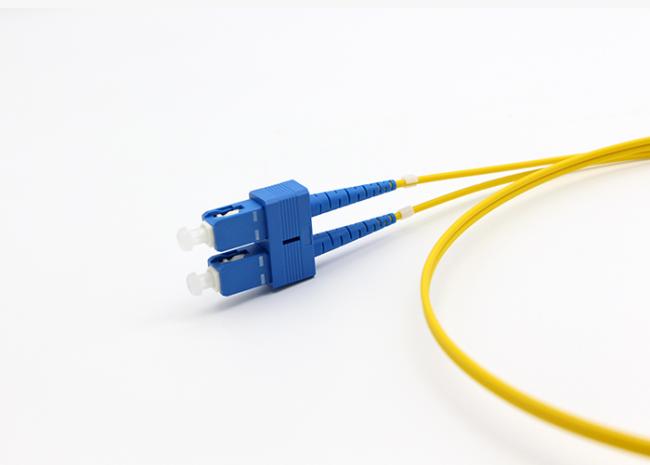

50CM SC to ST SM Fiber Patch Cable Duplex 2.0mm 9/125 LSZH Yellow Zipcord
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling
Product Info:
| Connector | sc-st | Jacket OD | 2.0mm |
| Fiber Mode | 9/125μm | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G652D |

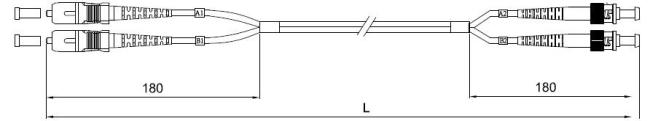

Physical Information:
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
