Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine
FTTH High Precision Fusion Splicer With ENGLISH, RUSSIAN,SPANISH,PORTUGUESE,ITALIAN,FRENCH,GERMAN language software

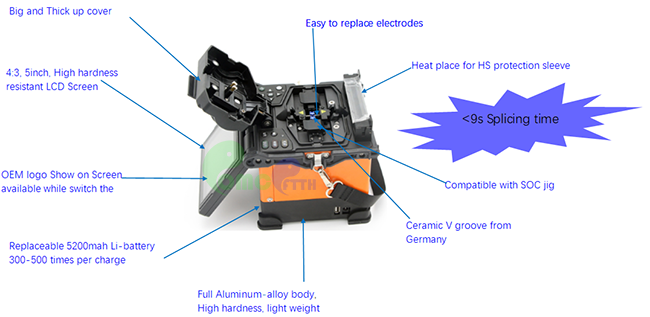

OMCFS-118 is a special design for the installation, operation and maintenance of optical fiber Splice purpose. It’s a high precision, durable, convenient optical instrument. Widely used in the construction, inspection, maintenance of FTTX project.
Specifications
| Model | OMCFS-118 Fusion Splicer |
| Splicing Type | SM, MM, DS, NZDS,BIF,PMF |
| Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
| Cleaved Length | 8～16mm |
| Fiber Image/ Magnification | 300/200 |
| View Display | 5 inch digital high-quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
|
Battery Capacity |
200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
|
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
|
Operating Condition |
0-5000m above sea level, Temperature: -10-60℃, Humidity:0～95%RH (No dew) |
| Weight | 1.98 KG (including battery) |
| Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) |
Available language: English, Russian,Spanish,Portuguese,Italian,French,German
Package:
| No | Name | Qty |
| 1 | Fusion Splicer (OMCFS-118) | 1 set |
| 2 | Fiber Cleaver | 1 pc |
| 3 | Fiber Stripper | 1 pc |
| 4 | AC Adatpor | 1 pc |
| 5 | Li Battery | 1 pc |
| 6 | Charger | 1 pc |
| 7 | Spare Electrodes | 1 pair |
| 8 | Cooling Tray | 1 pc |
| 9 | Carrying Case | 1 pc |

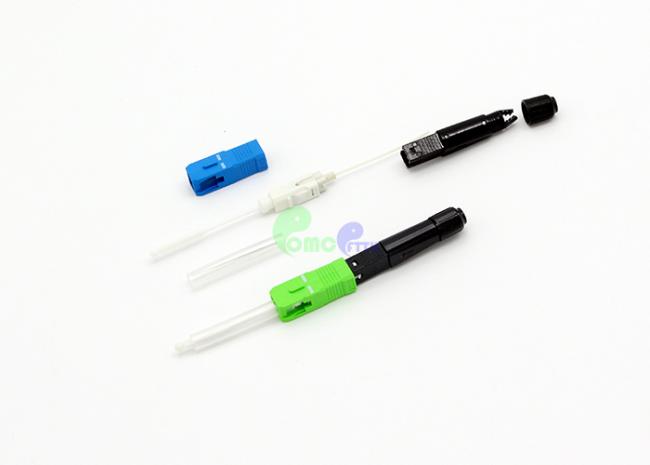

SC FIBER FUSION-ON CONNECTOR

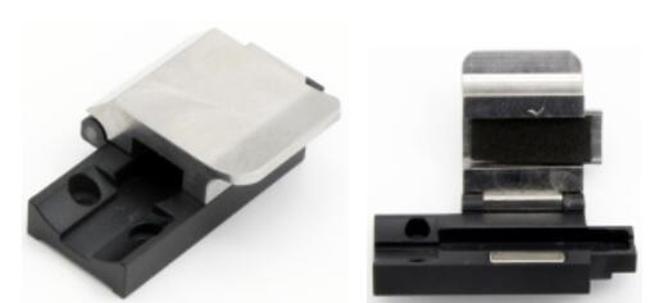

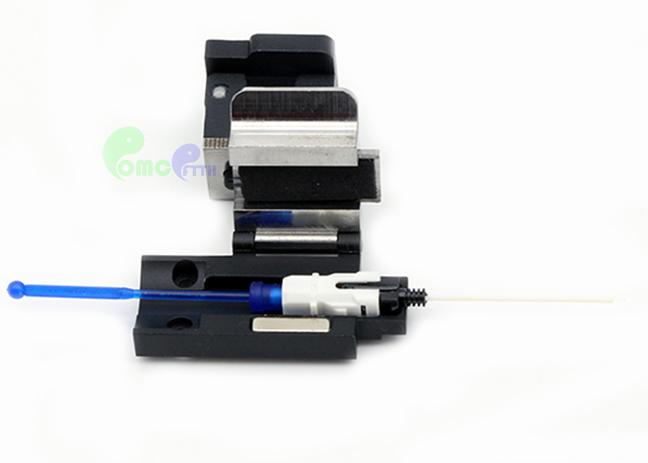

SOC Jig to splice SC connector
