LC Fiber Optic Adapter, LC Hybrid Fiber Optic Adapter with Plastic or Copper Material

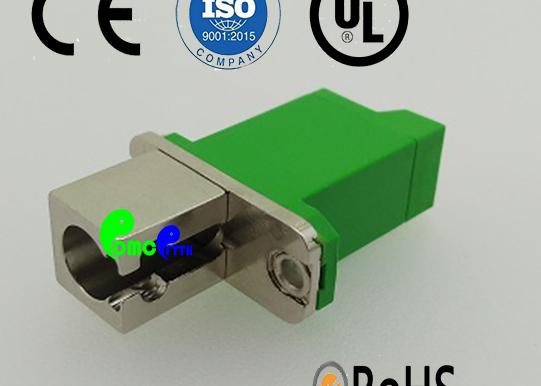

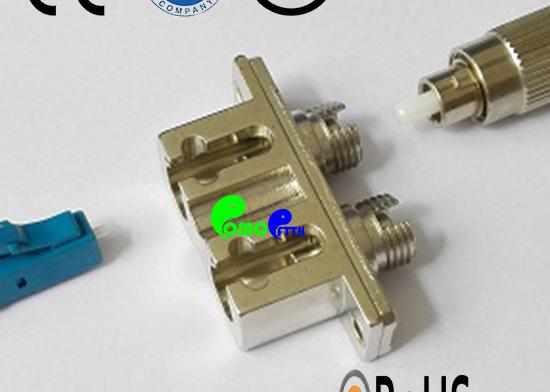

Hybrid adaptors are used for mating 2 different styles of connector. Our hybrid adaptors conform to international standards, are quality tested, and are available in singlemode, multimode and many different connector-type configurations.

Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

OMC could supply standard types of Adaptors, such as SC-FC, SC-ST, FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.

OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

 l  IL: <0.2dB,

l  Withdrawal force (g/f): 200~600

l  Durability: <0.10 dB typical change, 1000 matings

l  Temp.: -40°C to +80°C

l  ROHS certificated

l  Patch panels, ODF and other optical connections.

l  Optical networks demarcation and monitoring point
