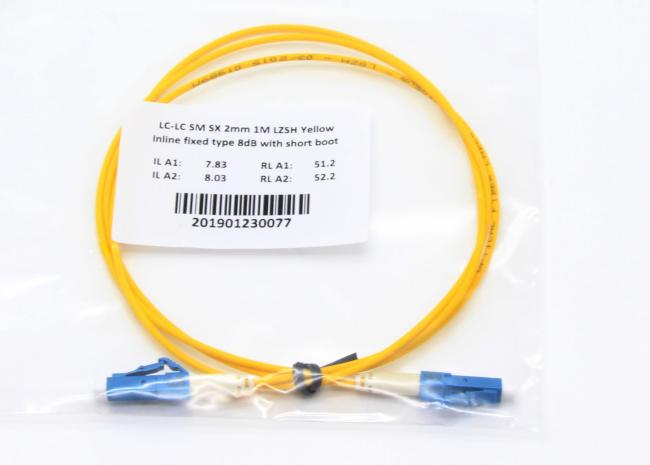

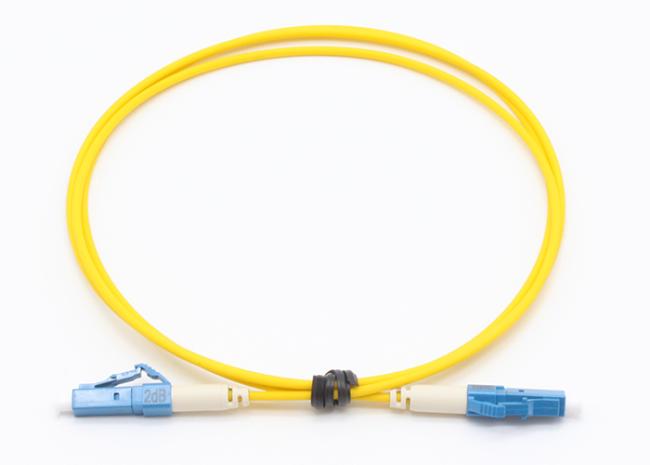

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application
Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application
Patch cord type Fixed attenuators from OMC offer defined control of optical signals in both integrated and add-on products.
Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requireｍent. These precise attenuation levels provide for highly accurate performance.
OMC fixed attenuators are used in applications where a pre-determined amount of light loss is specified. Though its applications range widely, fixed attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.
Attenuator Specifications
| Items | Parameters | |
| Operating Bandwidth: | SM | MM |
| 1310/1550nm | 850nm | |
| Insertion Loss | <0.20db | <0.35db |
| Return Loss | UPC≥50db, APC≥60db | PC≥35db |
| Connectors: | SC,FC,LC,ST | |
| Attenuation Tolerance | 1～10db ≤0.5db; 11～30db≤1dB. | |
| Vibration | ≤0.1db change between 10～55hz(2hr) | |
| Cable option: | 2mm,0.9mm,3.0mm cable etc | |
| Max Optical Input Power | 200mw | |
| Operating temp | - 40°C to +85°C(≤0.2db insertion loss) | |
Applications
• DWDM applications
• Test & measurement
• Optical sensors
• Telecommunications applications
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
