LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL
LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL
Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia split sleeve for high alignment.
OMC could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.
OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
As for LC adapter OMC can offer below types.

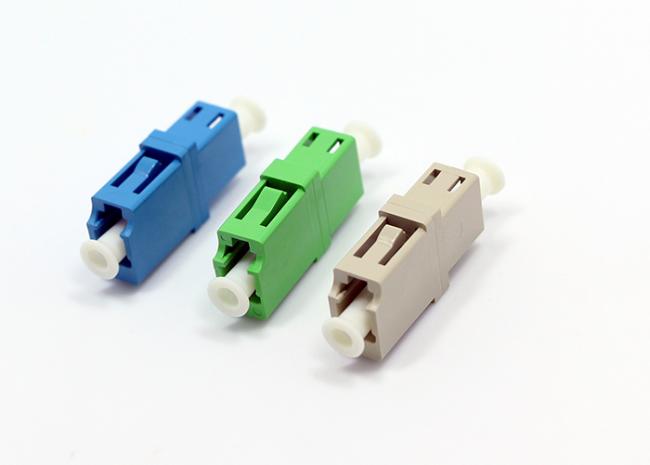

1, Simplex LC
2, Simplex LC in SC footprint structure

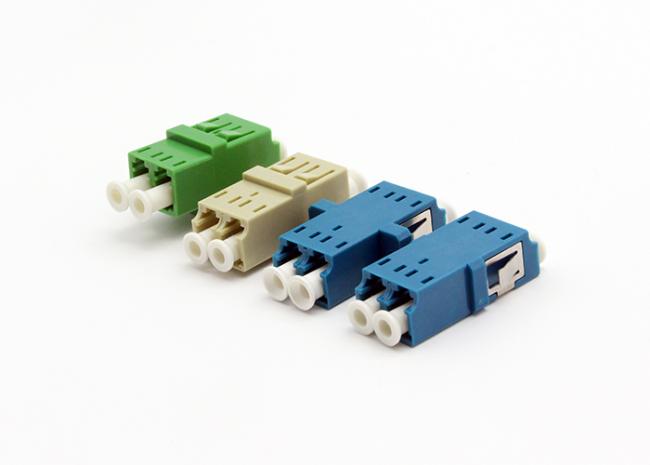

3, Duplex LC in SC footprint structure (standard flange and reduced flange)

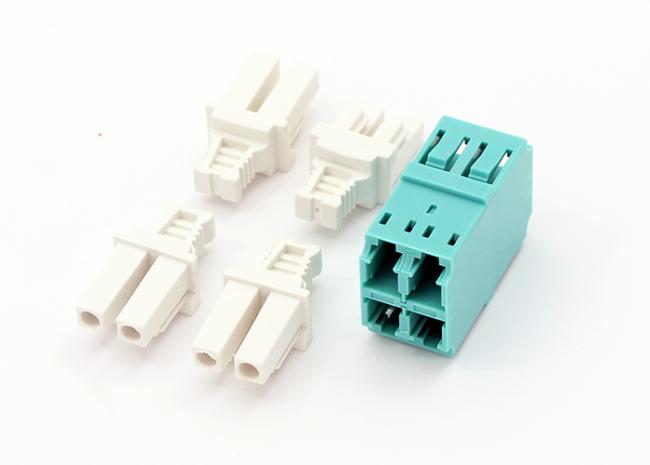

4, Quad LC

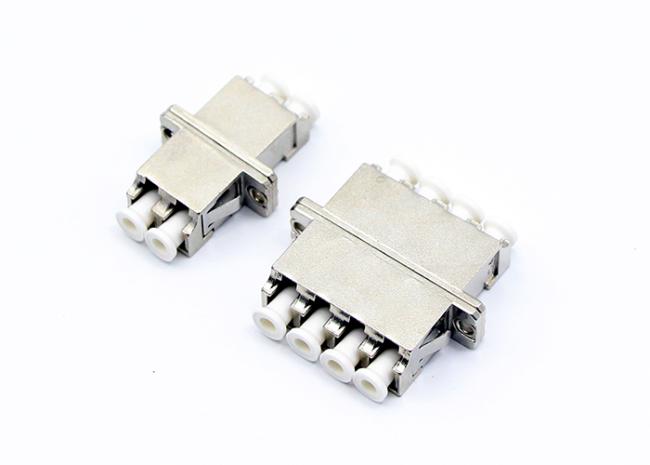

5, Metal LC Duplex in SC footprint structure
6,Metal LC Quad
Spec Performance:
- IL: <0.2dB,
- Withdrawal force (g/f): 200~600
- Durability: <0.10 dB typical change, 500 matings
- Temp.: -40°C to +80°C
- ROHS certificated
Application:
- Patch panels, ODF and other optical connections.
- Optical networks demarcation and monitoring point
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.
Parts &Material
| Material | Remarks | Remarks |
| Sleeve | Zirconia | |
| Housing | PC or PEI | Flammability UL94 V-0 |
| Dust cap | PVC | Flammability UL94 V-0 |
| Metal Clip | Stainless Steel |
Optical Performance
| Quality Level | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
