Breakout Fibre Patch Leads 8F SC APC - SC APC Single Mode 9 / 125 Fanout 2.0mm PVC/LSZH Jacket Customized
Breakout Fibre Patch Leads 8F SC APC - SC APC Single Mode 9 / 125 Fanout 2.0mm PVC/LSZH Jacket Customized
Breakout Patch cables are installation cables that are suitable for laying in buildings, primarily in cable conduits and
cable trays. They are designed for direct connector assembly with no need for splice connectors.
OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry
standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit
Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the hightest in
network performance.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Connector’s Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
Standard Compliance
1. TIA 604 (FOCIS)
2. TIA/EIA 492AAAE
3. IEC 61754
4. IEC 60793-2-10
5. IEC61300-3-35
6. YD/T1272.1-2003
7. RoHS, ISO9001 Compliant
Features
1. High quality zirconia ferrules.
2. Good repeatability and interchange.
3. Flame-retardant, rugged and durable jacket.
4. 100% optically tested for insertion loss to ensure high quality
Optical Specifications:
| Connector | SC | Jacket OD(mm) | 8cores:10.5mm |
| Fiber Mode | 9/125μm | Jacket Color | SM:Yellow/Blue/White; |
| Polish | APC | Wavelength | SM:1310/1550nm |

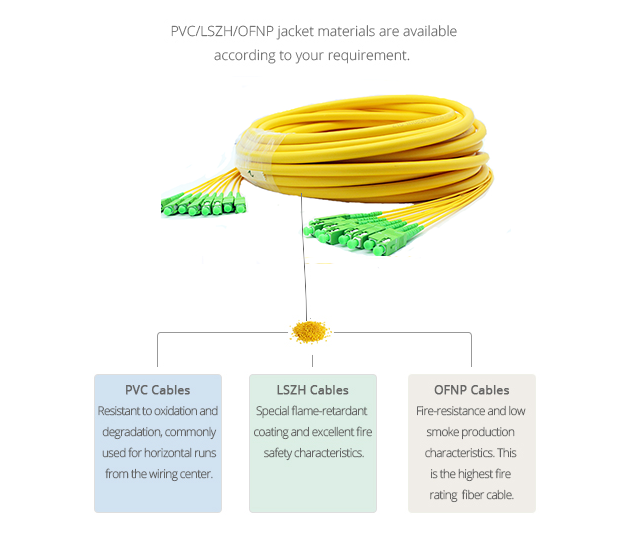

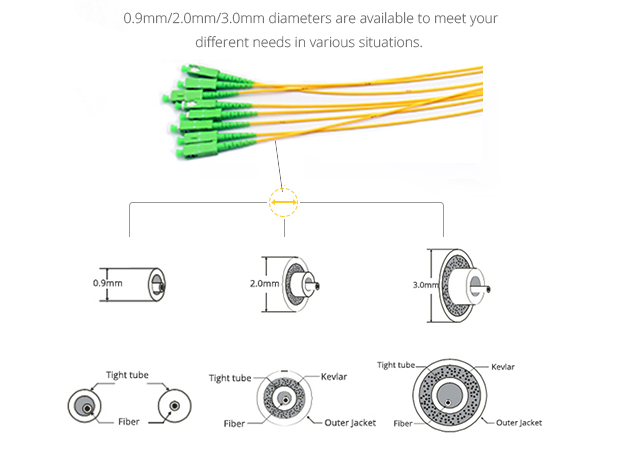

| Cable Type | Multi-fibers Breakout 2.0mm unit cable | Jacket Material | LSZH/PVC |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min)
|
Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |

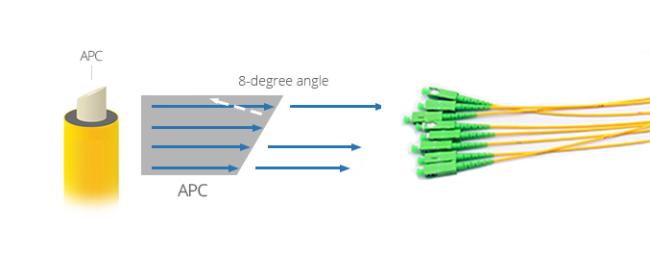

The angled end face of the APC connector causes reflected light to reflect at an angle into the cladding. APC connectors are Preferred for RF video signal transport and FTTx applications.
Application:
1. Data Center
2. Enterprise
3. Fiber to the X (FTTX)
4. LAN and WAN
5. CATV Network
6. Telecommunications Network
Premium Performance Fiber Optic Cable
Telecommunication CATV Lan and WAN Network Broadband FTTH
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
