High Repeatability SC Simplex Fiber Optic Connector Adapters For SM MM OM3 OM4
High Repeatability SC Simplex Fiber Optic Connector Adapters For SM MM OM3 OM4
SC Simplex adapter With inner Shutter are developed to couple and mate two SC connector plugs. With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, eye safety and connector cleanliness are an absolute necessity. OMC’s SC adapter with Internal shutter has been designed to meet this growing need.
You can actuate this integrated, retractable shutter inside the adapter body by inserting the SC connector into the adapter. The shutter automatically opens as you insert the SC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end-face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (500 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40～+85 | ||
Products details:

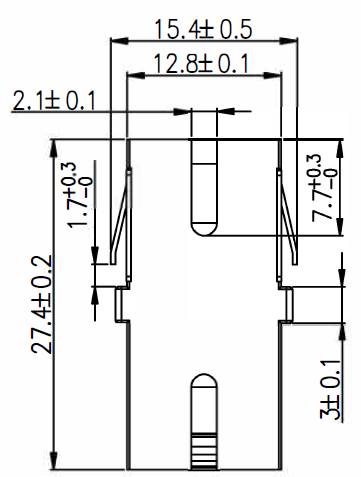

| Reduced Flange type | Drawing |
 |
 |
Features:
Provides eye safety by attenuating laser light when the mated connector is removed
100% automatic shutter mechanism requiring no operator handling of the shutter chip
Complies with IEC 61754-4 standard
Available in Flanged and Flangeless options
Push-pull locking mechanism for easy installation
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Material
| Parts name | Material | Color |
| Housing body | PBT | Blue, Green, Beige, Aqua, Magenta or Customized |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PBT | Blue, Green, Beige, Aqua, Magenta or Customized |
| Inside Shutter | SUS304 | - |
| Metal Plate | Bronze | - |
| Dust Cover | PE/ABS | Black or Customized |
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Application:
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
Hight light
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
