Duplex TF LC/UPC OM3 50/125um Non Flange Fiber Coupler
TF type LC MM Duplex Adapter
Description
TF Type LC&SC Fiber Adapter are developed to couple and mate 2/4/8 SC&LC connector plugs. Each TF Type Fiber adapter have 4pcs stainless steel mounting clips/hooks allowing it to be easily snapped into rectangular cut outs and fix very well and stable.
Our range of high-quality TF Type Fiber adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Products Materials
| Parts name | Material | Color |
| Housing body | High quality PC(UL-94V0) | Blue, Green, Beige, Aqua, Magenta or Customized |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PBT/PEI | Blue, Green, Beige, Aqua, Magenta or Customized |
| Metal Plate | Stainless steel | - |
| Dust Cover | PE/ABS | White or Customized |
Products Highlights
Optical Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.1dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (500 Mating) | 0.1dB Max. | ||
| Withdrawal force (g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40～+85 | ||
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125,OM5 50/125
Drawing:

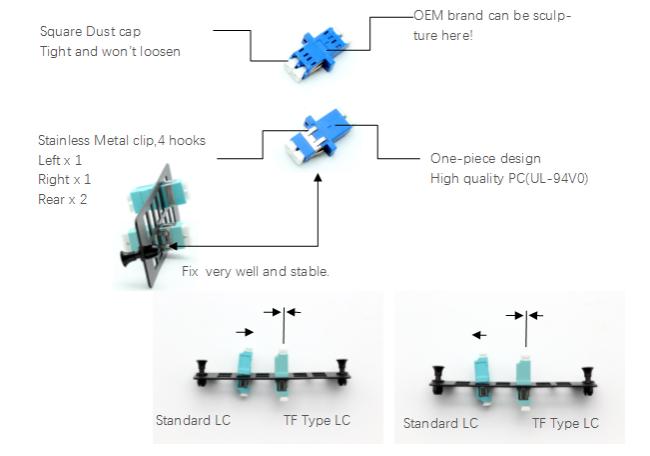

The difference between Standard SC/LC adapter and TF type SC/LC adapter
We offer the sincere dedicated service!
Before Sale:
detailed products test report
related specifications
During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered
After Sale:
Any problems on the product, please contact us

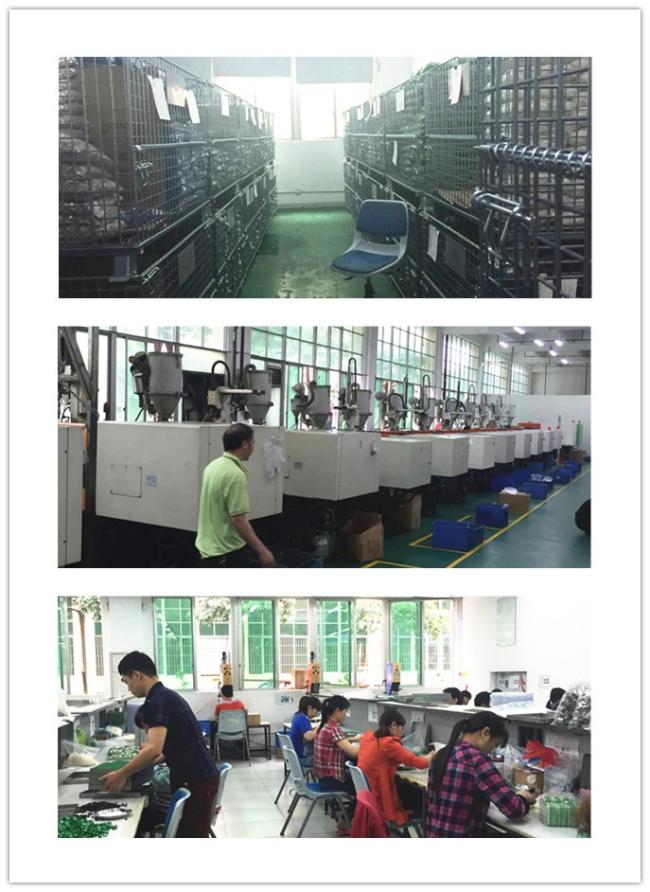

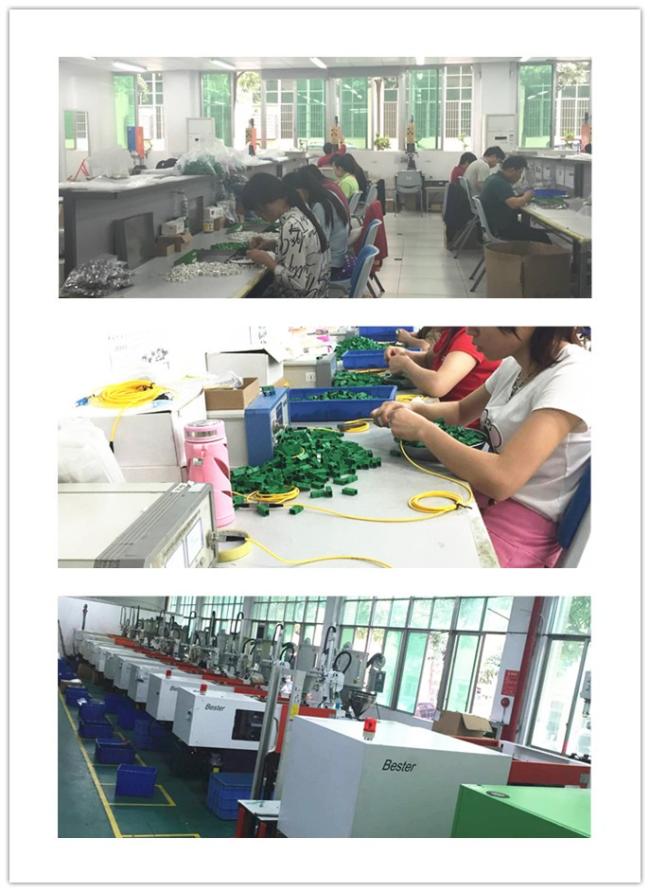

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
