1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box
1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box
1km FC OTDR Single Mode Fiber Test Dead Zone Eliminator Fiber Rings FTTH Tools Fiber Optic OTDR Launch Cable Box
An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. It is often available on a small spool or within a “launch box”, which is used to create the proper conditions for testing another similar optical fiber for faults. This method avoids undesirable variations in loss and distance measurements. A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber.
Specifications of OTDR Launch Cable Box
| Length x Width x Height | 238 x 141 x 66mm |
| Fiber Type | G.652D/G.657A/OM1/OM2/OM3/OM4 |
| Connector Type | FC/SC/LC selectable |
| Polishing Type | APC/UPC selectable |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 1kg(package included ) |
| Operating Temperature | -40°C to +55°C |
| Typical Loss |
<0.5dB @ 1310nm for 1000 meters <0.5dB @ 850nm for 1000 meters |
Products details of OTDR Launch Cable Box
Place the necessary length of fiber between the OTDR and the fiber-under-test
Help to make a more precise measurement with an OTDR
Discloses the insertion loss and reflectance of the near-end connection
 |
Robust Metal Retractor Make the box easy to carry in actual testing |
 |
Built-in Cable Management. Helps to reduce cable stress and save space. |
 |
Auto Purge Valve, Elaborate air vent valve regulates the pressure automatically. |
Features of OTDR Launch Cable Box
Full-spectrum single mode fiber
Small macro bending radii, comply with G.657A or G.652D standard
Small attenuation value
Suitable for any optical testing environment
Mainly used to compensate for the OTDR test blind area, central fiber
Without any fusion joint, small volume, light weight Easy to carry
Length 500M, 1KM, 2KM... 5KM (custom)
Loss less than or equal to 0.5dBmkm
Water and dust prove allowing the unit to be taken into almost any environment
Nonmetal construction will not dent, corrode, or conduce electricity
Application of OTDR Launch Cable Box

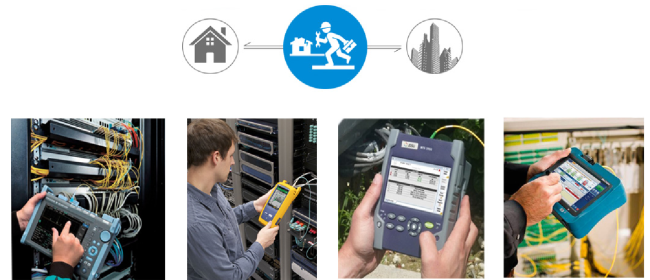

Widely used with OTDR to help minimize measurement uncertainty indoor or outdoor
