Field Assembly Connector FTTH Products SC APC Quick Connector
Field Assembly Connector FTTH Products SC APC Quick Connector
Field Assembly Connector Fabricante de China SC APC Fast Connector rapida montagem conector SC APC Quick Connector
Fast installation connector also be called Field install connector is a new kind of connector that could be used in FTTH project scene. They don’t need to polishing, no epoxy. They could be installed in the field and make connection less than two minutes. Of course, It don’t need fused the fiber. Just some little tools enough, so it could save time and cost.
Optical Specifications of SC APC Fast connector
| Part No. | J-O-SSA-53 | Connector | SC APC |
| Ferrule | Ceramic | V-Groove | Ceramic material |
| Cable Diameters |
0.9/2.0/3.0mm Simplex cable 2x3 FTTH Drop Cable |
Dimension | 53mm |
| Insertion Loss | ≤0.3dB(typical);≤0.5dB(Max) | Return Loss | UPC≥40dB;APC≥50dB |
| Tension Strength | ≥50N | Operating Temperature | -40°C~+75°C |

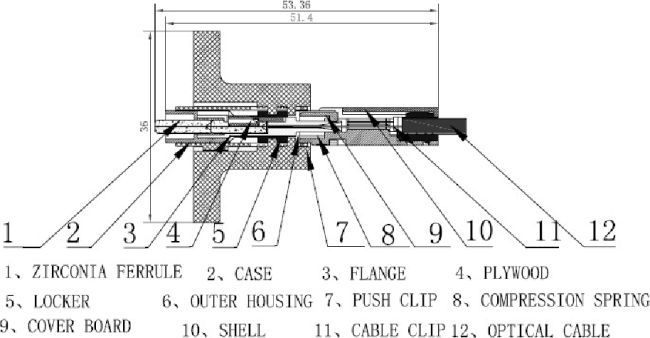

Products details of SC APC Fast connector
Environmental Specifications of SC APC Fast connector
| Items | Requirements | Standards |
| Repeatability | Pull and Push 10 times | I1 range03dB, R1 range≤5dB No mechanical damage, as deformation cracking or relaxing and so on |
| High temp | +85C, 96h | I1 range_0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Low temp | _40'C, 96h | I1 range_0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Temp. cycle | -40C~+85C, 21Cycles, Total 168 h |
I1 range_0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Damp and Hot | +75C, 95%, 96h | I1 range-0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Water Immersion |
25±2℃, 168h, Tap water | I1 ranges0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and soon |
| Repeatability | 5 times | I1 range_0.3dB, R1 range≤5dB No mechanical damage, obvious scratch |
| Vibrate (Sine) |
Frequency: 10-50Hz Scanning: 45times/min Amplitude: 0.75mm Half Time: three directions, 2h each |
I1 range<0.3dB, R1 range≤5dB No mechanical damage, obvious scratch |
| Drop | Height: about 1.5m, Times: 8 |
I1 range<0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Mechanical Durable |
Pull and Push: 500 times | I1 range_0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Tension | Cable: 20N, online; Cable: 30N, offline, 2mins |
I1 range.0.3dB, R1 range≤5dB No mechanical damage. as deformation cracking or relaxing and so on |
| Torsion ( Cable) |
Load: 15N Rate: 10 times/min Times: 25 |
I1 range=0.3dB, R1 range≤5dB No mechanical damage, as deformation cracking or relaxing and so on |
Feature of SC APC Fast connector
• No epoxy and polishing required
• Quick and easy fiber termination
• Precision mechanical alignment insures low insertion loss
• Superior optical performance
• Streamlined component design, convenient operation
• Pre-installed, on-site assembly without end face grinding and consideration
Application in FTTX
• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• CATV
• Optical access network
• Fiber to the Subscriber (FTTX) applications
• Optical cable interconnection
• Maintenance or emergency restoration of fiber networks

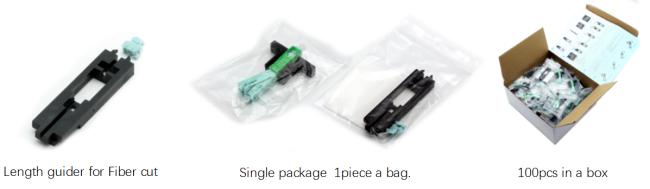

Packagec
1, Free samples--- we can supply free products for testing .
2, Brand---OEM service acceptable
3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4, Quality Level---High quality as per your requirements.
5, Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8, Optical Network Project Consultant---Professional experts help you.
9, New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
