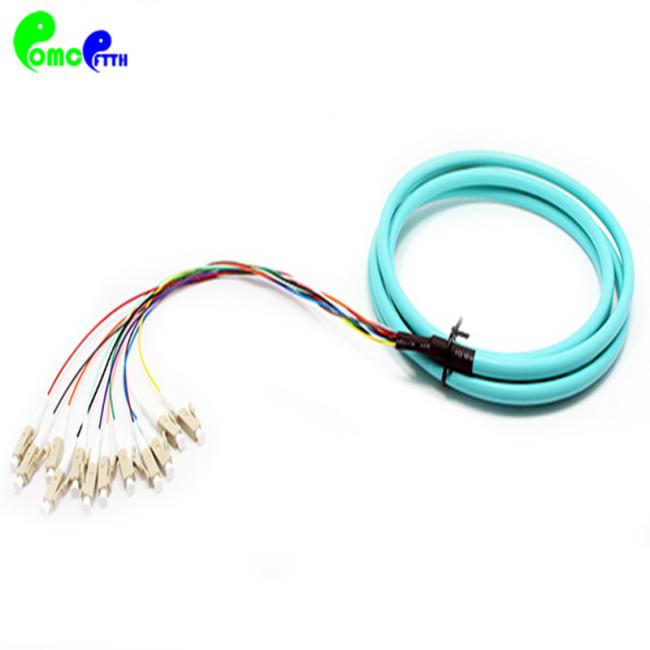

Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM
Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM
4-144F Pre-terminated 900um cable fiber pigtail is a multi-fibers pigtail. The unit fiber is 0.6 or 0.9 tight buffer cable. Meets Telcordia GR-326 Core and ROHS requirements.
OMC’s 4-144F Pre-terminated 900um cable fiber pigtail are available in both single and multimode versions with either APC or UPC polish types. Our fiber pigtails come with a partial outer jacket protecting the Tight/Loose buffers from damage. If installed in a high density application, the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails. Perfect for fiber optic installations within a building or between two buildings.
All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.
Connector’s Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.
MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.
DIN: IEC61754-3
E2000: IEC61754-15
Optical Specification
| Connector | SC,LC,FC,ST,E2000,MU,LX.5,DIN,D4 | Jacket OD(mm) |
4cores:5.0mm |
| Fiber Mode | 9/125μm, 50/125μm, 62.5/125μm, | Jacket Color |
SM:Yellow/Blue/White; OM1&OM2: Orange; OM3:Aqua; OM4:Aqua/Violet/ Magenta |
| Polish | PC,UPC,APC | Wavelength |
SM:1310/1550nm MM:850nm |
| Cable Type | Multi-fibers Breakout 0.9mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min) |
Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 100 nm | ||
| Angular Offset | ------ |
8°± 0.5° |
|
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Application:
1. Optical fiber communication systems engineering
2. Fiber optic data communication network
3. Connected with trunk cables on one end, equipment port on the other end.
4. Connected with transfer modules on one end, equipment port on the other end.
Features
1. 100% pre-terminated and tested in factory to ensure transfer performance.
2. Rapid configuration and networking, reduce installation time.
3. Supports 40G and 100G network applications.
4. Low insertion loss and added loss.
5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
6. High back loss, small volume, light weight.
7. End-face geometry and quality superior than IEC and Telcordia standards.
8. LSZH, OFNP, OFNR cable jacket.
9. Mechanical performance: IEC 61754-20 standard.
10. RoHS and REACH materials compliant.
