4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA

Price Negotiable
Price: Negotiable
MOQ: 2000 Meters
Delivery Time: 5~10 working days
Brand: OMC or OEM
Product Description

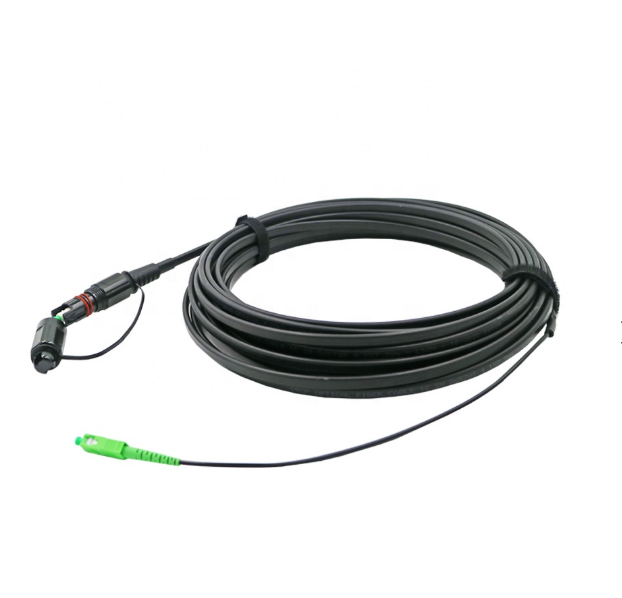

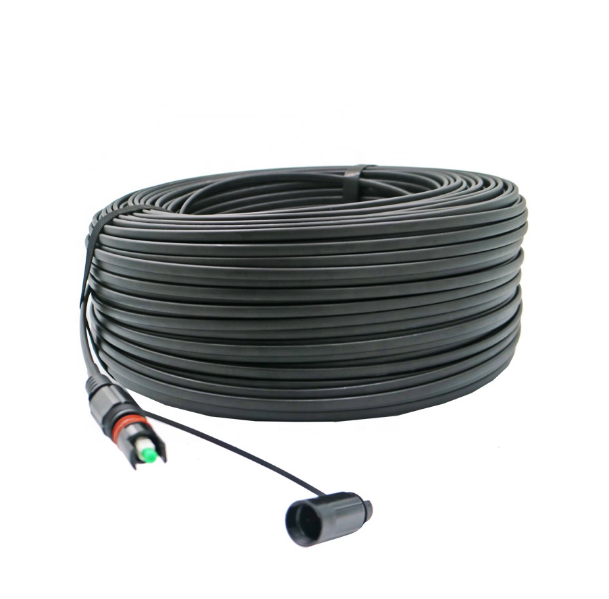

Outdoor 4.5*8.1mm FTTH Flat aerial drop cable 1-24 core optical fiber G657A

Flat FTTH put in side with 2 FRP, the optical fiber unit positioned in the Loose tube. Two parallel strength member are placed at the two sides and have loose tube to protect the inside FTTH, outside sheath is PE.


Specification:
Items
Description
Number of fiber
1
Fiber Color
Blue
Fiber type
G652D/G657A1/G5657A2/G657B3
Strength member
material
FRP

diameter
1.2±0.1mm
Inner Sheath
material
LSZH Loose Tube

diameter
2.5mm±0.1mm

Color
Yellow
Out sheath
material
PE

Color
Black

Thickness
0.9mm±0.1mm
Cable size (Height * width)
4.5x8.1±0.2mm
Cable weight/km
45KG±2KG

Features
1. Good mechanical and environment characteristic
2. Anti-UV characteristic meet the requirements of relevant standards
3. The mechanical characteristic meet the requirements of relevant standards
4. Big capacity data transmission
5. Meet various requirements of market and clients
