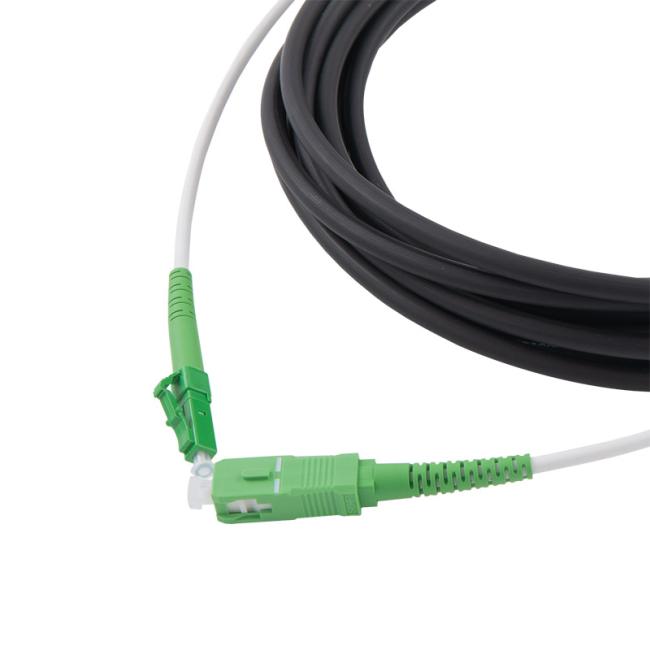

FTTH Fiber Optic Patch Cable G657A2 SC APC To LC APC 4.5mm SM SX CCA Double Jackets
FTTH Fiber Optic Patch Cable G657A2 SC APC- LC APC Simplex Drop Cable Double Jackets 4.5mm Black CCA Patch Cord
The drop cable is primarily intended for direct installation, i.e. installation with staples or clips or routing inside cable raceways and moldings. This installation technique puts extra tough requirements on the cables in terms of bend performance, crush resistance and other mechanical parameters.
The drop cable has extremely good bend performance due to the G657 fibre and the inbuilt bend restriction of the cable design. The cable will by itself control the minimum bend radius and permit kinking.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling
Product Info:
| Connector | SC to LC | Jacket OD | 4.5mm |
| Fiber Mode | 9/125μm | Jacket Color | White Black |
| Polish | APC to APC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | CCA |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -20~70°C | Storage temperature | -40~80°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G657A2 |

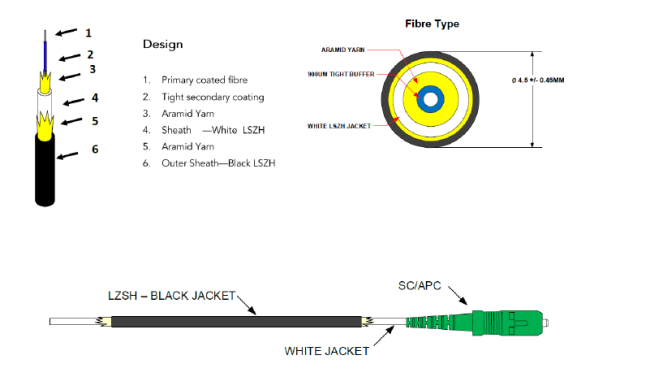

Physical Information:
How to Choose The Right Fiber Optic Cable Type?
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 |
100Gbps Ethernet 100GBASE SR4
|
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable
Package:
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
