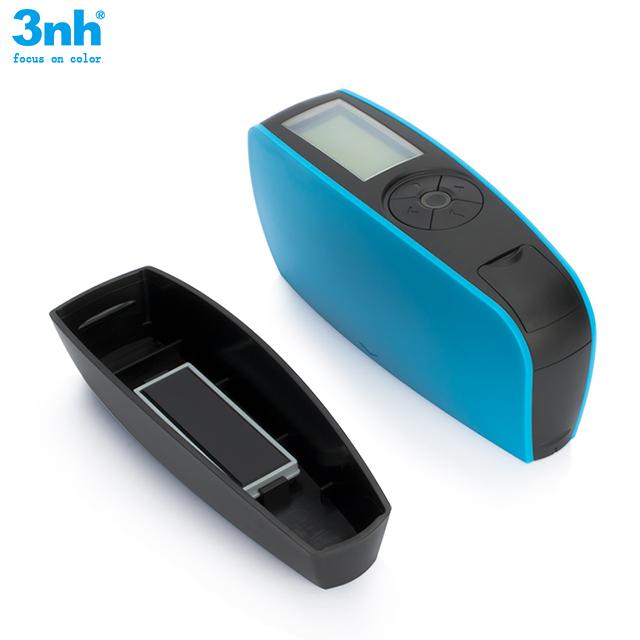

2000GU Multi Angle Precise Paint Gloss Meter YG268 Bluetooth AA Battery For Glossy Measurement
2000gu multi-angle precise gloss meter with bluetooth AA battery for glossy measurement YG268 Silk
Brief Introduction
YG series gloss meter is independently developed by Silk with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Technical Specification
| Parameters | Tri-angle Gloss Meter YG268 |
| Measuring Angle |
20° & 60° & 85° Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area | 20°: 9×10mm, 60°: 9x15mm, 85°: 5×38mm |
| Measuring Range | 20°: 0~2000GU, 60°:0~1000GU, 85°: 0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability | 0-100GU 100-2000GU ± 0.2GU ± 0.2%GU |
| Measurement Standard | Conform to the Working Requirements for JJG696 First Class Glossmeter |
| Chromaticity Response | Corresponding with CIE 1931(2°) under CIE C Light Source |
| Tolerance | ±0.2, ±0.2% |
| Measuring Time | 0.1s |
| Display Size | TFT 2.3" |
| Data Port | USB |
| Language | Chinese, English |
| Battery | 1pcs of No.5 dry cell battery more than 10000 times (within 8 hours) |
| Dimension | 160*52*84mm |
| Weight | 350g |
| Measuring Mode&Storage |
Basic Mode and Continuous Mode: 15000 Statistical Mode: 10000 QA Mode: 10000 |
| PC Software | GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% Relative Humidity, No Condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate |
| Optional Accessories | Mini Printer |
Frequently Asked Questions
1. Which models are the equivalent models to YG268 Gloss Meter?
Answer: Our YG268 gloss meter is equivalent to BYK4563 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
