Our :
We are a factory dedicated to the production of hardware accessories, and we have our own mature product line. Skilled production operators and experienced technical inspectors.
The pipe(tube)clamps is one of our many products.Below i briefly introduce this clamp.

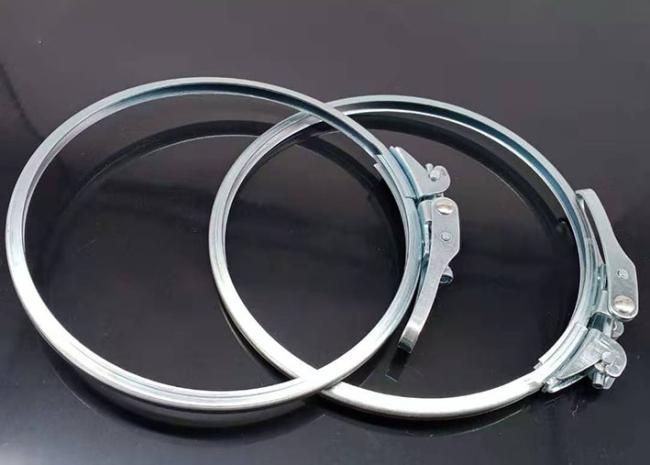

This clamp consists of two parts: a metal pipe clamp and a separate seal
We usually produce cold-rolled sheets, which are then galvanized, assembled and packaged for delivery.
This clamp can directly connect two flanged pipes. Easy to install and easy to use, not only saves cost but also improves assembly work efficiency
Usage:
It is often used for flanging of ventilation and dust removal, heating and ventilation pipes, or fixed connection of flange pipes. Commonly used in petroleum, chemical industry, construction, shipbuilding, factory workshop, food processing, supermarket, gymnasium, equipment pipeline and other fields.
Product Features:
1. Lightweight and cheap.
2. Easy to install
3. Our factory can customize non-standard sizes
4. Excellent material and preferential price
5. We can provide OEM/ODM service.
6. It is used to connect the ventilation pipe with a thickness of 0.8 mm.
Product Parament:
| ɸD | PRODUCT CODE | Width | Thickness |
| mm | mm | mm | |
| 80 | BMG80 | 10 | 0.8 |
| 100 | BMG100 | 10 | 0.8 |
| 120 | BMG120 | 10 | 0.8 |
| 125 | BMG125 | 10 | 0.8 |
| 140 | BMG140 | 10 | 0.8 |
| 150 | BMG150 | 10 | 0.8 |
| 160 | BMG160 | 10 | 0.8 |
| 180 | BMG180 | 10 | 0.8 |
| 200 | BMG200 | 10 | 0.8 |
| 225 | BMG225 | 10 | 0.8 |
| 250 | BMG250 | 10 | 0.8 |
| 275 | BMG275 | 10 | 0.8 |
| 300 | BMG300 | 10 | 0.8 |
| 315 | BMG315 | 10 | 1 |
| 350 | BMG350 | 10 | 1 |
| 400 | BMG400 | 10 | 1 |
