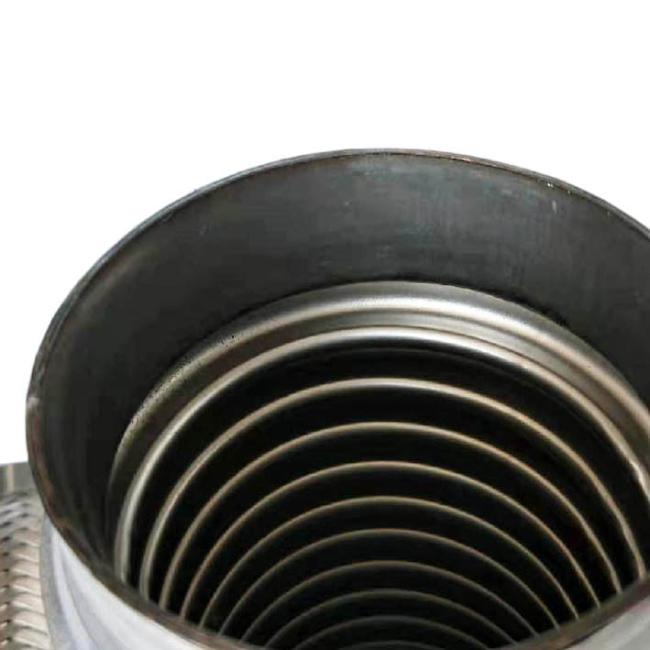

Stainless Steel Automobile Spare Parts Auto Muffler Flexible Exhaust Pipe
Stainless Steel Auto Spare Parts Exhaust Pipe Auto Muffler Flexible Exhaust Pipe
Product Detail:
Exhaust pipe auto muffler flexible exhaust pipe is flexible piece of pipe that allows the exhaust system some flexibility. we can according your require making the size of product.
| Part No. | Inner Diameter(D) | Length(L) | ||
| inch | mm | inch | mm | |
|
M1 |
1-3/4’’ | 45 | 4’’ | 102 |
| M2 | 6’’ | 152 | ||
| M3 | 7’’ | 178 | ||
| M4 | 8’’ | 203 | ||
| M5 | 9’’ | 230 | ||
| M6 | 10’’ | 254 | ||
| M7 | 11’’ | 280 | ||
| M8 | 12’’ | 305 | ||
| S1 | 2’’ | 50.8 | 4’’ | 102 |
| S2 | 6’’ | 152 | ||
| S3 | 8’’ | 203 | ||
| S4 | 9’’ | 230 | ||
| S5 | 10’’ | 254 | ||
| S6 | 11’’ | 280 | ||
| S7 | 12’’ | 305 | ||
| V1 | 2-1/4’’ | 57.2 | 4’’ | 102 |
| V2 | 6’’ | 152 | ||
| V3 | 8’’ | 203 | ||
| V4 | 9’’ | 230 | ||
| V5 | 10’’ | 254 | ||
| V6 | 11’’ | 280 | ||
| V7 | 12’’ | 305 | ||
| P1 | 2-1/2’’ | 63.5 | 4’’ | 102 |
| P2 | 6’’ | 152 | ||
| P3 | 8’’ | 203 | ||
| P4 | 9’’ | 230 | ||
| P5 | 10’’ | 254 | ||
| P6 | 11’’ | 280 | ||
| P7 | 12’’ | 305 | ||
| Part No. | Inner Diameter(D) | Length(L) | ||
| inch | mm | inch | mm | |
| U1 | 3’’ |
76.2 |
4’’ | 102 |
| U2 | 6’’ | 152 | ||
| U3 | 8’’ | 203 | ||
| U4 | 10’’ | 254 | ||
| U5 | 12’’ | 305 | ||
| T1 | 42 | 120 | ||
| T2 | 165 | |||
| T3 | 180 | |||
| L1 | 50 | 120 | ||
| L2 | 165 | |||
| G1 | 55 | 120 | ||
| G2 | 165 | |||
| G3 | 180 | |||
| G4 | 200 | |||
| G5 | 250 | |||
| F1 | 60 | 160 | ||
| F2 | 200 | |||
| F3 | 240 | |||
| Y1 | 65 | 150 | ||
| Y2 | 200 | |||
| I1 |
70 |
100 | ||
| I2 | 120 | |||
| I3 | 150 | |||
| I4 | 200 |
|||
Feature:
We also produce some like this :factory price exhaust system steel auto exhaust flexible pipe/ exhaust bellows/ flex hose clamp
(1)exhaust flexible pipe, automobile exhaust system component
(2)installed between engine and muffler
(3)absorbs muffler pipe thermal expansion
(4)used to decrease engine noise and vibration
(5)reduces air pollution
(6)made of stainless steel(main body), single layer and double layer are available
(7)Construction: outer braid + middle double bellows + inner braid +Aluminized trumpet mouth+Aluminized extension necks on both sides
(8)Environmentally friendly
(9)Size, diameter and length can be produced as requirements
