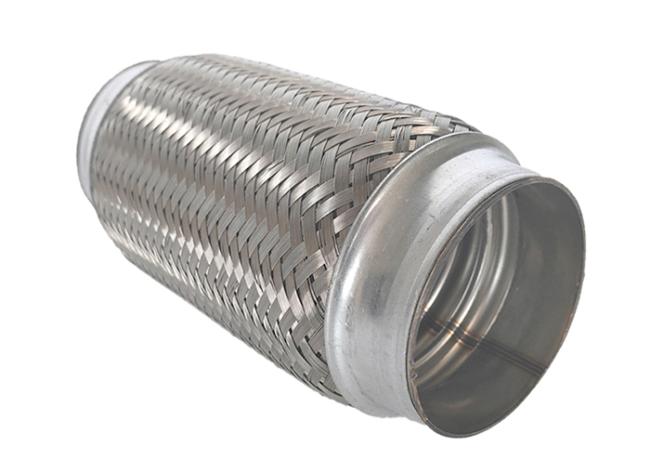

2.5 Inch Auto Spare Parts Exhaust Pipe System Flexible Bellows Stainless Material
2.5 inch Exhaust Pipe System Flexible Bellows Stainless Steel Material
Introduction:
Flexible exhaust pipes are installed between exhaust manifold and muffler, so that the entire exhaust system is flexibly connected, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.
Application: Can be used in the exhaust system of large vehicles such as cars, trucks, buses etc.
Types:
1. External braidflexible pipe: bellows +external braid +collar
2. Internal braid flexiblepipe : internal braid +bellows+externalbraid +cap
3. Interlock flexible pipe: interlock +bellows +externalbraid +cap
4. Nipple flexible pipe:internalbraid +bellows+externalbraid+cap +nipple
(Size, diameter and length can be produced as client's requirements)
Exhaust Flexible Pipe Specifications:
| Inner Diameter (ID) | Length(L) | Inner Diameter (ID) | Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) |
| 6”(152mm) | 6”(152mm) | ||
| 7”(178mm) | 8”(203mm) | ||
| 8”(203mm) | 10”(254mm) | ||
| 9”(230mm) | 12”(305mm) | ||
| 10”(254mm) | 42mm | 120mm | |
| 11”(280mm) | 165mm | ||
| 12”(305mm) | 180mm | ||
| 2”(50.8mm) | 4”(102mm) | 50mm | 120mm |
| 6”(152mm) | 165mm | ||
| 7”(178mm) | 55mm | 120mm | |
| 8”(203mm) | 165mm | ||
| 9”(230mm) | 180mm | ||
| 10”(254mm) | 200mm | ||
| 11”(280mm) | 250mm | ||
| 12”(305mm) | 60mm | 160mm | |
| 2-1/4”(57.2mm) | 4”(102mm) | 200mm | |
| 6”(152mm) | 240mm | ||
| 7”(178mm) | 65mm | 150mm | |
| 8”(203mm) | 200mm | ||
| 9”(230mm) | 70mm | 100mm | |
| 10”(254mm) | 120mm | ||
| 11”(280mm) | 150mm | ||
| 12”(305mm) | 200mm | ||
| 2-1/2”(63.5mm) | 4”(102mm) | Note: Customized size are available. | |
| 6”(152mm) | |||
| 7”(178mm) | |||
| 8”(203mm) | |||
| 9”(230mm) | |||
| 10”(254mm) | |||
| 11”(280mm) | |||
| 12”(305mm) | |||
