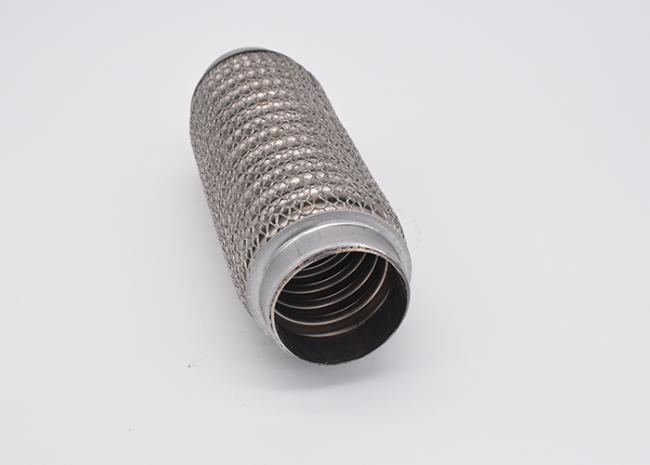

Silver Car Universal Auto Spare Parts Flexible Exhaust Pipe For Generator
Car Universal Auto Spare Parts Flexible Exhaust Pipe For Generator
Flexible Exhaust Pipe Introduction:
A flex pipe is flexible piece of pipe that allows the exhaust system some flexibility. Flex pipes are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak
Exhaust Flexible Pipe Specifications:
|
Inner Diameter (ID) |
Flex Length(L) |
Overall Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 48mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2”(50.8mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 54mm | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/4”(57.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 2-1/2”(63.5mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| 3”(76.2mm) | 4”(102mm) | 8”(203mm) |
| 6”(152mm) | 10”(254mm) | |
| 8”(203mm) | 12”(305mm) | |
| 10”(254mm) | 14”(356mm) | |
| Note: Customized size are available | ||
Exhaust Flexible Bellows Types:
A. Bellows + Outer Braid
B. Bellows + Interlock + Outer Braid
C. Bellows + Inner Braid + Outer Braid
D. Bellows + Outer Mesh
E. Type A/B/C + Nipples
F. Type D + Nipples
To offer you exact price, please tell me the type that you need.
