Male And Female Flange Stainless V Band Clamp 2.5 In
2.5 Inch Auto Spare Parts Stainless Steel V-Band Clamp With Male And Female Flange
Product Detalls:
V-Band clamps provide fast and secure coupling for connecting flanged joints. V-Band couplings are mechanical connecting clampsconsisting of two or more V-insert sections welded inside a strong and adjustable clamp. The V-Band coupling (when tightened)exerts a radial force to connect, seal and/or hold together flanged connection components in pumps, engines, turbo chargers or
filters
Each assembly includes one
1. t-bolt style clamp + two SS304 flanges
2. Quick installation clamp + two SS304 flanges
For details, please contact us by mail, we will give you detailed product information and prices.
Amy e-mail: export (at) ypmachinery.com
Wechat:Amy010086
whatsapp: 86 16631129391
product parameters:
| size(inch) | Flange inner diameter(mm) | Outer diameter of exhaust pipe(mm) | Material |
| 1.5 | 38.9 | 38.1 | SS304 |
| 1.75 | 45.3 | 44.5 | SS304 |
| 2 | 51.6 | 50.8 | SS304 |
| 2.25 | 57.9 | 57.1 | SS304 |
| 2.5 | 64.3 | 63.5 | SS304 |
| 2.75 | 70.6 | 69.8 | SS304 |
| 3 | 77 | 76.2 | SS304 |
| 3.25 | 83.3 | 82.5 | SS304 |
| 3.5 | 89.7 | 88.9 | SS304 |
| 3.75 | 96.1 | 95.6 | SS304 |
| 4 | 102.4 | 101.6 | SS304 |
| 4.5 | 115.1 | 114.3 | SS304 |
| 5 | 127.8 | 127 | SS304 |
| 6 | 153.2 | 152.4 | SS304 |
Features:
Rich configuration on both T Bolt and Nut and match various application even critical like hih temperature, high vibration.
1. Whole stainless steel and resistant to corrosion;
2. Positive sealing integrity;
3. Easy assembly and disassembly;
4. High strength and reliable;
5. Good welding and physical performance .Outer diameter of exhaust pipe
6. Bending by special technology means, it has a unique anti-loosening spring design.
7. After the inner ring is tightened, the hose is rounded to ensure that the hose can hold the hose tightly under elastic deformation and various complex working conditions, with strong sealing.
Application:
The V-Band Clamps/Couplings offer effective fastening solutions in exhaust systems,including filter frame, turbocharging system, exhaust system and industrial application which need flange connection. remove intercooler systems and turbo parts, such as charge piping, intake pipes, diesel engines, turbochargers, and heavy-duty exhaust systems.Etc

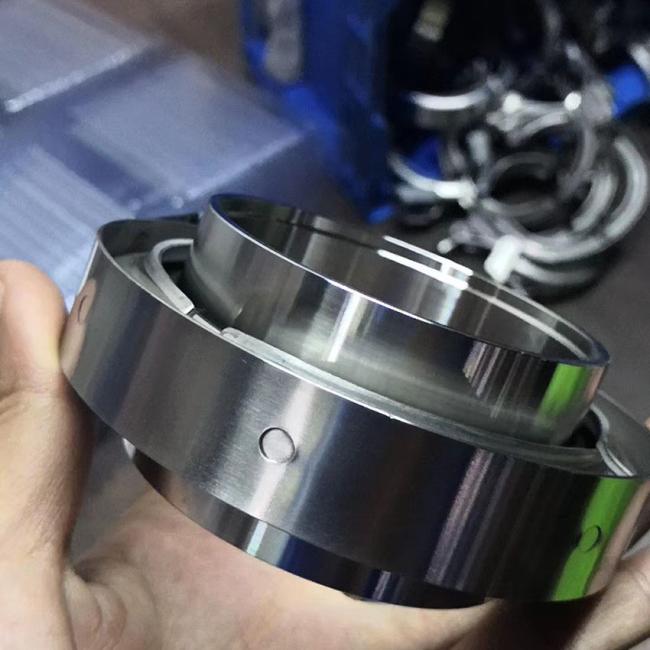

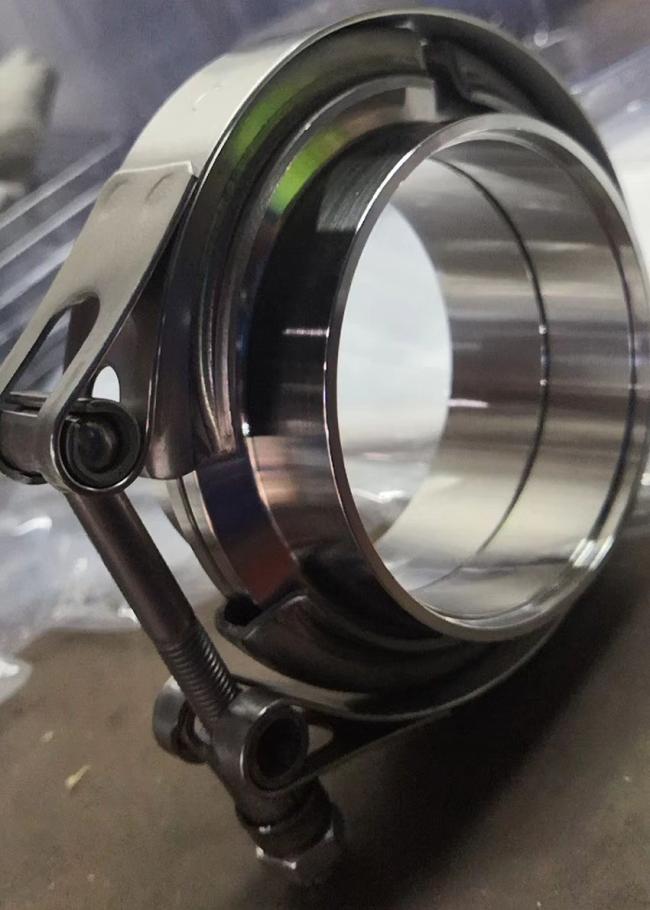

Product Picture:
