2 Inch Carbon Galvanised Tube Clamps Without Sealing Rubber Gasket
Price:
negotiation
MOQ:
300 PCS
Delivery Time:
10-35 days According yuor order
Brand:
WD
Product Description
C Clamp Pipe Hange , Split Clamps Without Sealing Rubber Gasket
1. Product Introduction :
We select excellent materials, and generally use 2.0mm or 3.0mm plates for larger thickness. The surface treatment is electroplating (hot galvanizing is also available for special requirements)
Both ends are connected with standard M8 bolts and nuts. The top of the clamp has a hole for riveting long nuts and bolts to fix the pipe.
2. Product parameters :
| Size | 80mm - 400mm. Other specifications are customized according to the quantity |
| Wideness | 28MM |
| Highness | 71~231mm,there are highness for as per size. |
| Bolt nut | M8 OR M10 according you need |
| Manufacturing process | Deepdrawing and welding |
| Thickness | 2.0mm or 3.0mm |
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 80 | DG80 | 28 | 71 | 2 |
| 100 | DG100 | 28 | 81 | 2 |
| 120 | DG120 | 28 | 91 | 2 |
| 125 | DG125 | 28 | 94 | 2 |
| 140 | DG140 | 28 | 101 | 2 |
| 150 | DG150 | 28 | 106 | 2 |
| 160 | DG160 | 28 | 111 | 2 |
| 180 | DG180 | 28 | 121 | 2 |
| 200 | DG200 | 28 | 131 | 2 or 3 |
| 225 | DG225 | 28 | 144 | 2 or 3 |
| 250 | DG250 | 28 | 156 | 2 or 3 |
| 275 | DG275 | 28 | 169 | 2 or 3 |
| 300 | DG300 | 28 | 181 | 2 or 3 |
| 350 | DG350 | 28 | 206 | 2 or 3 |
| 400 | DG400 | 28 | 231 | 2 or 3 |

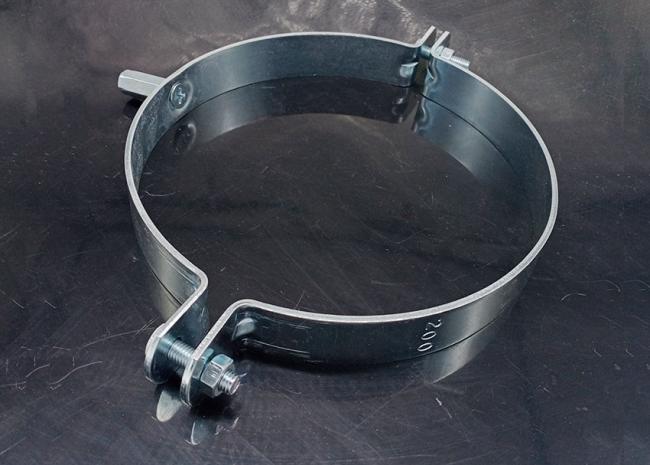

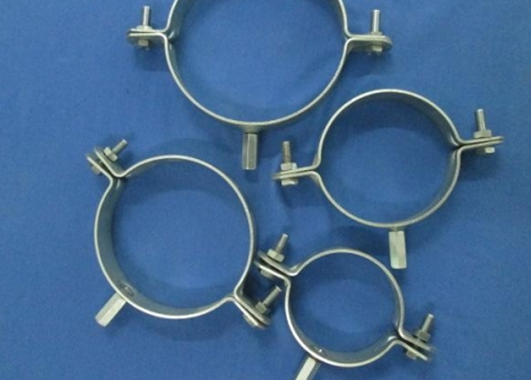

4. Product Picture :
