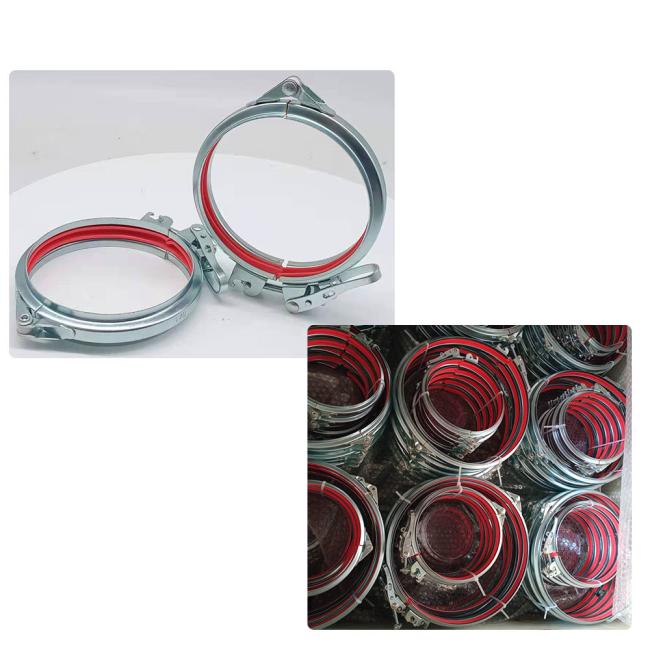

600mm Zinc Plated Galvanized Pipe Clamp Carbon Steel Dust Extraction Fittings
Zinc Plated Carbon Steel Dust Extraction Fittings Duct Clamps , Galvanized Pipe Clamp , Sealing Ring Pipe Clamp
Product Features:
Our products have excellent materials and favorable prices according to the purchase quantity
Our pipe clamp is integrated with the sealing strip, and there is no need to install the sealing ring separately. Just align the clamp with the pipe to fasten it
We specialize in the production of export related pipe cards, with skilled and skilled operators, experienced engineers and inspectors. We serve pre-sale, sale and after-sale
| Material | Zinc plate or SS304 |
| Production cycle | About 15 day |
| Type | Handle and bolt |
| OEM/ODM | Yes |
| Payment | T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight |
Product Parament:
| ɸD | PRODUCT CODE | A | H | Thickness |
| mm | mm | mm | mm | |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG180 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG250 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Feature :
For easy installation, comes with a rubber seal.
With galvanised hinge and handle.
Used for fast and tight assembly of the duct systems.
