Carbon Steel Quick Release Ring Clamp Spiral Rapid Lock With Seal Gasket

Price Negotiable

Price: negotiation

MOQ: 100 PCS Or negotiation

Delivery Time: 10-35 days According yuor order

Brand: WD

Product Description

Stainless Steel 304 Quick Release Pipe Clamp Spiral Rapid Lock Ring Clamping With Seal Gasket

Product Detail:

This is a simple and quick fitting for installing pipes, which is used to connect two flange pipes with a thickness of 0.8-1.2mm. Open the handle and clamp the two docked pipes tightly.

We will bring a pin alone. If we don't open it often, we can insert a pin to fix the handle.

The metal clamp material :carbon steel

Finish :galvanized

Seal gasket material : TPE-D / EPDM/Silicone gasket

Product Features:

1. We are equipped with a pin for each clamp.

2. Materials can be selected

3. Support logo on products

4. Quick and convenient installation

5. The material of the sealing ring can be changed according to customer needs

6. Products of non-standard sizes can be customized

7. The drawings or samples provided by customers can be customized for production

Material	Carbon steel
Production cycle	About 15 day,according the order
Type	Handle or bolt
OEM/ODM	Yes
Payment	T/ T 30% desposit by T/T ,70% balance T/T before shipment. L/C at sight

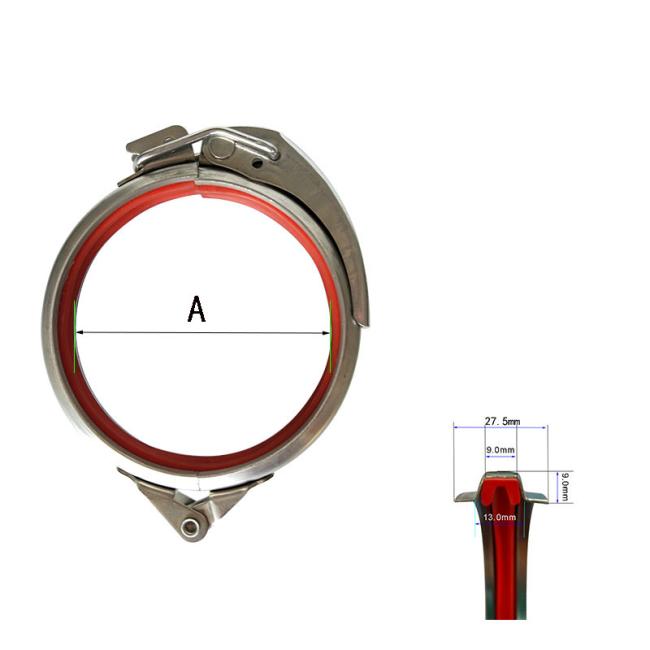

Product Parament:

Product code	DN	A:mm	Thickness:mm	Width:mm
WD-A80	80	82	0.8/1.0	27.5
WD-A100	100	102	0.8/1.0	27.5
WD-A120	120	122	0.8/1.0	27.5
WD-A140	140	142	0.8/1.0	27.5
WD-A150	150	152	0.8/1.0	27.5
WD-A160	160	162	0.8/1.0	27.5
WD-A180	180	182	0.8/1.0	27.5
WD-A200	200	202	0.8/1.0	27.5
WD-A225	225	227	0.8/1.0	27.5
WD-A250	250	252	0.8/1.0	27.5
WD-A275	275	277	0.8/1.0	27.5
WD-A300	300	302	0.8/1.0	27.5
WD-A315	315	317	0.8/1.0	27.5
WD-A350	350	352	0.8/1.0	27.5
WD-A400	400	402	0.8/1.0	27.5
WD-A450	450	452	0.8/1.0	27.5
WD-A500	500	502	0.8/1.0	27.5
WD-A550	550	552	0.8/1.0	27.5
WD-A600	600	602	0.8/1.0	27.5
...	...	...	...	...
