Concrete Placing Equipment For Highrise Buildings
Price:
negotiable
MOQ:
1 unit
Delivery Time:
15-25 working days
Brand:
POTENTIAL
Product Description

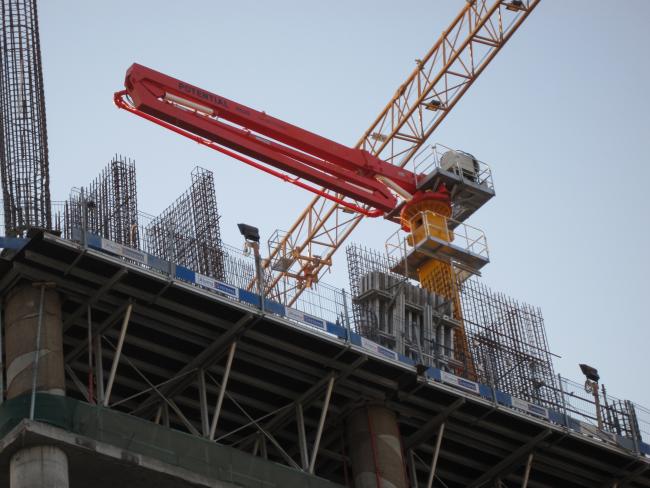

HG28 climbing Concrete Placing Boom, 28m boom length, climbing by floor frame or shaft frame
Applications
■ Widely for horizontal concrete placing at roof of highrise buildings, by using which the overall working
efficiency of the project can be promoted.
■ Support internal climbing through floors and shafts on site with limited space.
Features
■ The machine is fully hydraulic driven and can be slewed 360°.
■ The balance valve and solenoid directional valve are products of well-known brand.
■ The main electric components are from Omron or Schneider.
■ The modes of operation: Wireless remote control and cable remote control.
Specifications
| Model | HG28 | |
| Boom Section | 3 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | |
| Radius of placing boom (m) | 27.7 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 22.9 | |
| Hydraulic foldable arm sections | 1st section | 10.5m |
| 2nd section | 9.2m | |
| 3rd section | 8.0m | |
| 4th section | N/A | |
| Boom articulation (°) | 1st section | －4.2～82.5 |
| 2nd section | 0°～180° | |
| 3rd section | 0°～180° | |
| 4th section | N/A | |
| Slewing range (°) | 360 | |
| Power of motor (kW) | 11 | |
| Pressure of hydraulic system (MPa) | 28 | |
| Type of hydraulic oil | ESSO NUTO H46 | |
| Interval of climbing frame (m) | Climbing | 3.0～4.2 |
| Placing concrete | 6.0～8.4 | |
| Resting | ||
| Mode of operation | 1. cable remote control | |
| 2. radio remote control | ||
| Power | 380V/50Hz | |
| wind speed | Placing concrete | ≤60 km/h |
| Climbing | ≤28 km/h | |
| working temperature | 0～48℃ | |
