25m3/H CNBM 15m Shotcrete Robot Underground Concrete Sprayer
9-25 m3 / h CNBM 15m Shotcrete Robot KC2012 Underground Concrete Sprayer
Applications

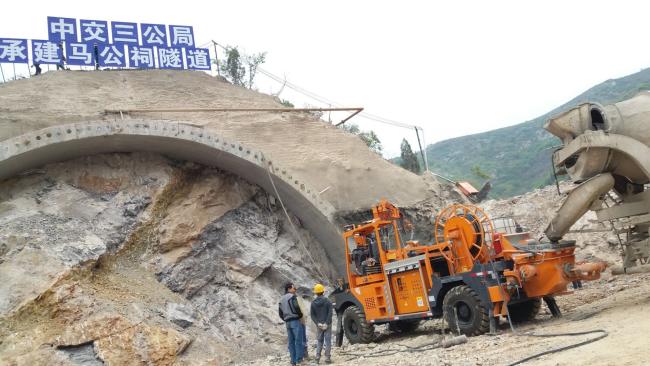

Widely used in concrete spraying projects of large and medium working sections, such as railway tunnel, road tunnel, culvert, diversion tunnel of hydropower station, subway and other underground projects.
The advantages of the equipments are:
1. Hydrostaticrunning system, rigid chassis, wet mix braking system.
2. Four-wheel transmission, four-wheel steering, small turning radius, thus make a better operation.
3. Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.
5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Electric motor and diesel two-motor drive.
7. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
8. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
Specifications
|
No. |
Item |
KC3016W |
||
|
1 |
Complete |
Weight(T) |
15.6 |
|
|
Travelling speed(km/h) |
0～20 |
|||
|
Grade ability(°) |
25 |
|||
|
Approach/departure angle(°) |
22/22 |
|||
|
Ground clearance(mm) |
305 |
|||
|
Steering |
4 wheel driving/steering/crab |
|||
|
Traveling mode |
wheels |
|||
|
Outside dimension(L×W×H)(mm) |
7410x2200x3200 |
|||
|
2 |
Pumping system |
Theoretical pump capacity (m³/h) |
7～30 |
|
|
Filling height(mm) |
＜1200 |
|||
|
Max.aggregate size(mm) |
≤16 |
|||
|
Max. theory outlet pressure (MPa) |
7.5 |
|||
|
Pipe diameter(mm) |
125 |
|||
|
Concrete cylinder diameter(mm) |
180 |
|||
|
Concrete cylinder moving distance(mm) |
800 |
|||
|
Hydraulic cylinder(cylinder diameter/pole diameter)(mm) |
100/60 |
|||
|
Hydraulic cylinder moving distance(mm) |
800 |
|||
|
Hopper capacity(L) |
400 |
|||
|
Max.theoretical horizontal deliver distance(m) |
/ |
|||
|
Max.theoretical vertical deliver distance(m) |
/ |
|||
|
3 |
Motor |
Rated Power(kW/rpm) |
45+30/1480 |
|
|
Rated voltage(V) |
three-phase/380(optional) |
|||
|
4 |
Engine |
Mode |
4 cylinder liquid-cooled diesel engine |
|
|
Rated power(kW/rpm) |
82/2200 |
|||
|
Diesel tank volumn (L) |
120 |
|||
|
5 |
Air compressor |
Mode |
/ |
|
|
Rated Power((kW) |
/(outsourcing) |
|||
|
Max.wind flow(m³/min ) |
＞10 (required inlet flow) |
|||
|
Exhaust pressure(MPa) |
＞0.5(required inlet pressure) |
|||
|
6 |
Shotcrete Boom |
Boom mode |
foldable + rotate + telescopic |
|
|
Max.spary area |
Upward(m) |
16 |
||
|
Forward(m) |
14 |
|||
|
Downward(m) |
7.5 |
|||
|
Width(m) |
28 |
|||
|
Main boom rotate angle(°) |
270 |
|||
|
Main boom tilt angle(up/down)(°) |
60/23 |
|||
|
Main boom telescopic length(mm) |
1600 |
|||
|
Telescopic boom rotate angle(°) |
(L/R)180/60 |
|||
|
Telescopic boom tilt angle(up/down)(°) |
30/62 |
|||
|
Telescopic boom stretch length(mm) |
2000 |
|||
|
Nozzle rotate(°) |
360 |
|||
|
Nozzle swing (°) |
240 |
|||
|
Nozzle brush(°) |
360 continuous |
|||
|
Nozzle diameter(mm) |
80 |
|||
|
7 |
Additive |
Flow rate(L/h) |
60～720 |
|
|
Working pressure(MPa) |
1.2 |
|||
|
Tank volumn(L) |
500 |
|||
|
Suction length(m) |
3m |
|||
|
Motor rated power(kW) |
1.5 |
|||
|
8 |
Cleaning System |
Flow rate(L/min) |
14 |
|
|
Working pressure(MPa) |
14 |
|||
|
Motor rated power(kW) |
4 |
|||
|
9 |
Electric System |
Operate mode |
wireless romote control |
|
|
Control mode |
PLC + touchscreen display |
|||
|
10 |
Cable Reel |
Cable length(m) |
100 |
|
|
Power Source(V/Hz) |
380/50(optional) |
|||
|
Electric current(A) |
400 |
|||
