Customized Spider Concrete Placing Boom Hydraulic Reliable Electrical System
Price:
negotiable
MOQ:
1 unit
Delivery Time:
7-15 working days
Brand:
POTENTIAL
Product Description

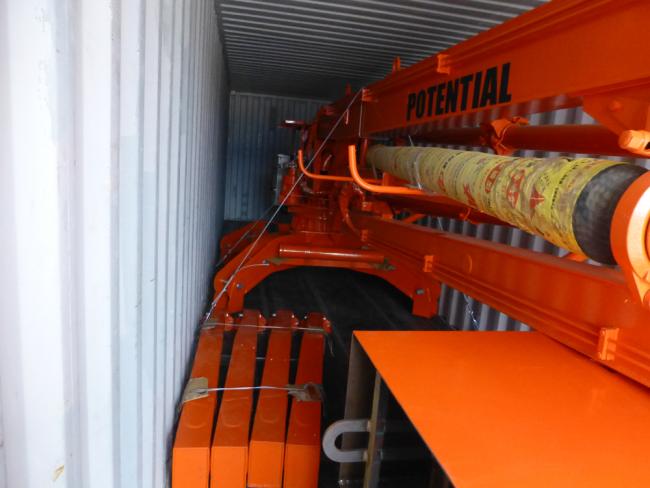

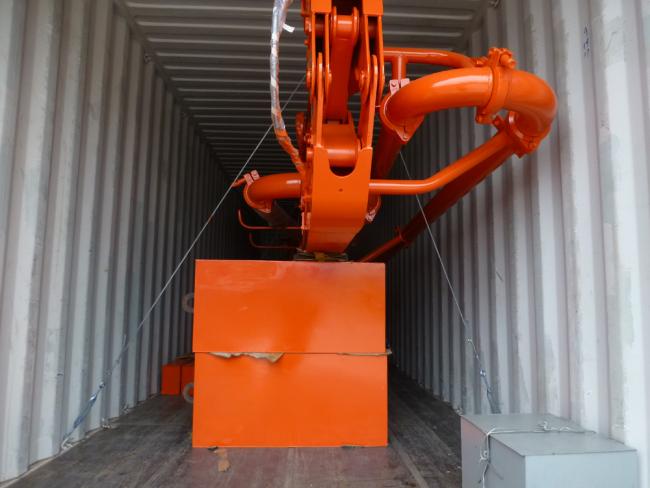

HG15 Spider Concrete Placing Boom

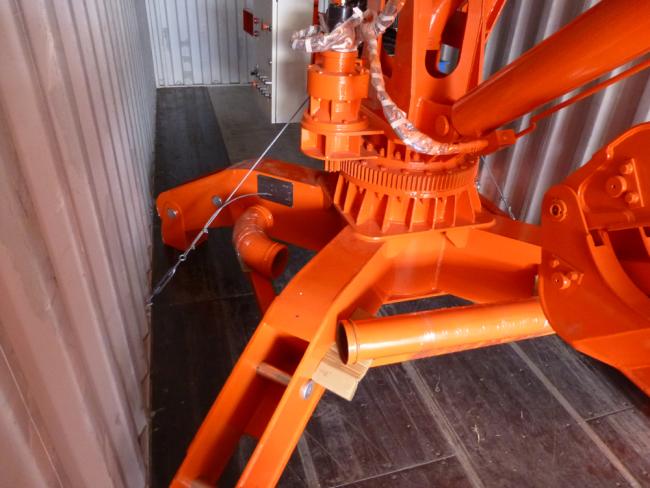

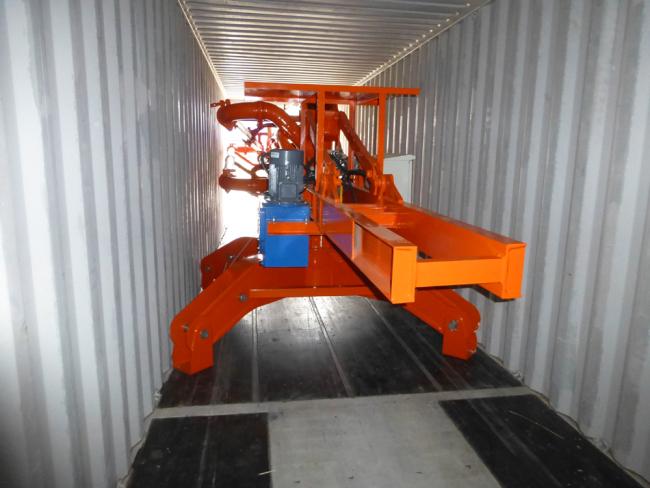

Advanced full hydraulic drive system
The hydraulic system of HG series mobile concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from
Italian Oil control and Germany Rexroth.
Reliable electrical system
Main components of HG series concrete placing boom are imported from world famous companies such as France Schneider.
Cable & wired remote control.
Specifications
| Model | HG13 | HG15 | HG17 | |
| Structure | Outrigger Style (hydraulic foldable arm) | |||
| Boom Section | 3 | 3 | 3 | |
| Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | Φ133×4 | Φ133×4 | |
| Delivery hose dimension (inside diameter × length) (″×mm) | 5″×3000 | 5″×3000 | 5″×3000 | |
| Radius of placing boom (m) | 13 | 15 | 17 | |
| Stationary height (to the joint between the end of the boom and Swivel table) (m) | 2.35 | 2.7 | 2.9 | |
| Hydraulic foldable arm sections | 1st section | 3.9m | 6.0m | 6.67m |
| 2nd section | 4.5m | 5.0m | 5.73m | |
| 3rd section | 4.6m | 4.0m | 4.61m | |
| 4th section | N/A | N/A | N/A | |
| Boom articulation (°) | 1st section | －2～84.4 | －2～90 | －4～90 |
| 2nd section | 0°～176° | 0°～176° | 0°～176° | |
| 3rd section | 0°～180° | 0°～180° | 0°～180° | |
| 4th section | N/A | N/A | N/A | |
| Slewing range (°) | 360 | 360 | 360 | |
| Power of motor (Kw) | 4 | 4 | 5.5 | |
| Pressure of hydraulic system (MPa) | 20 | 20 | 20 | |
| Type of hydraulic oil | ESSO NUTO H46 | ESSO NUTO H46 | ESSO NUTO H46 | |
| Interval of climbing frame (m) | Climbing | N/A | N/A | N/A |
| Placing concrete | N/A | N/A | N/A | |
| Resting | N/A | N/A | N/A | |
| Mode of operation | 1. cable remote control | 1. cable remote control | 1. cable remote control | |
| 2. radio remote control | 2. radio remote control | 2. radio remote control | ||
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Weight | Without counterweight | 2700kgs | 3200kgs | 4940kgs |
| Counterweight | 1500kgs | 2100kgs | 2200kgs | |
| working temperature | ﹣20～48℃ | ﹣20～48℃ | ﹣20～48℃ | |
