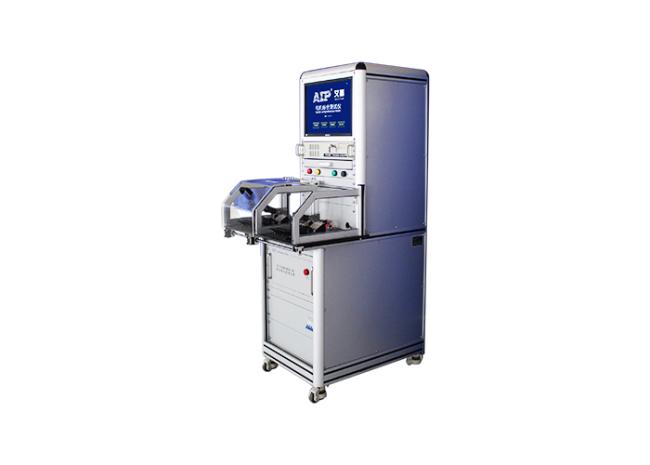

Enclosed Cover Motor Testing Machine , Electric Motor Analyzer Primary Aluminum Color
Motor Testing Machine For Pulsator Washing Machine, Motor Quality Control
1. Test product: pulsator washing machine motor
2. Application: washing machine industry
3. Technical parameters:
| Insulation resistance | |
| output voltage setting range/precision | DC 500V/1000V ±(2%×setting value+10V) |
| insulation resistance testing range/precision |
1～500MΩ ≤100MΩ:±(3%×setting value+0.5MΩ) ；>100 MΩ:±(5%×setting value+5MΩ) |
| insulation resistance alarm setting range | Max: 0～500MΩ; Min: 1～500MΩ |
| test time range/resolution | 0.5～999s 0.1s/step |
| Surge | |
| output voltage setting range/precision | 500～3000V ±(3%×display value+8V) |
| sampling frequency | 100MHz |
| waveform comparison |
area, area difference, corona and phase 3 waveforms displayed in the testing interface |
| DC winding resistance test | |
| testing range and precision | 10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set. |
| test time range/resolution |
0.5～999s 0.1s/step
|
| temperature compensation function | Yes |
| temperature probe/range | DS18b20 -10.0℃~+50.0℃ |
| precision | ±0.5°C(range: -10℃~+50℃) |
| AC Hipot | |
| test time range/resolution | 0.5～999.9s 0.1s/step |
| Output voltage setting range and precision | AC 200～3000V ±(2%×setting value+10V) |
| breakdown current testing range/precision | 0.10～20.00mA ±(2%×display value+0.05 mA) |
| Hipot current presetting alarm range | Max:0.10～20.00mA；Min:0.00～20.00mA |
| Low voltage start | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 words) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| Stall | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| No-load | |
| voltage testing range and precision | AC:30～500V ±(0.5%×display value+1 word) |
| current testing range and precision | AC:0.02～5.0A ±(0.5%×display value+2 words) |
| power testing range and precision | 0.6-1500W ±(0.5%×display value+5 words) |
| Direction of rotation | |
| rotation | CW, CCW, stilL |
4. Function description
Linux operating system, professional software, clear interface. It comes with the function of 1-D/2-D barcode scanning. Optional equipped with variable frequency inverter to adjust voltage and frequency. Standard equipped with yellow, green and red indicating light. Yellow-in test, green-pass, red-fail. The left station and right station works alternatively. The test item can be selected by the operator. The resistance test can be corrected to the value under standard temperature during the winding resistance test. The voice and light alarm will be triggered when the test fails.
5. Configuration list
| No. | Name | Specification | Unit | Qty |
| 1 | Master unit | Customized | Set | 1 |
| 2 | Test bench | Customized clamps | Set | 1 |
| 3 | Test software | Save the test, data and requirements control the test process | Set | 1 |
| 4 | Cabinet unit | Easy to be moved with foot wheels | Set | 1 |
