Rotor Testing Machine For Die-Casting Aluminum Rotor Of Exhaust Hood

1. Test introduction

1.1 Test object: die-casting aluminum rotor of exhaust hood

1.2 Test items introduction

1.2.1 Station: single

1.2.2 Test item: the quantity of broken bar, thin bar, the total number of conducting bar, the slot deviation angle

2. Test specification

3. Test process

3.1 Set test item and parameter range according to the motor model, and select the corresponding file before test.

3.2 Put the tested rotor on the designated location and fixed it

3.3 Press two start buttons to test rotor.

3.3 The machine completes the test automatically according to the setting

3.4 The machine output the result after finishing all the tests.

4. Features

4.1 Information management: the machine can be customized to connect with all kinds of MES system

4.2 Multiple functions: test the broken bar and thin bar, porosity, bubble, broken bar and thin bar caused by manufacturing process or bad material. Comprehensively improve the product quality control standard.

4.3 Simple interface: professional software is quite understandable and humanized.

4.4 Built-in IPC could save a large amount of test setting and result. It is convenient to save and query the data through USB port.

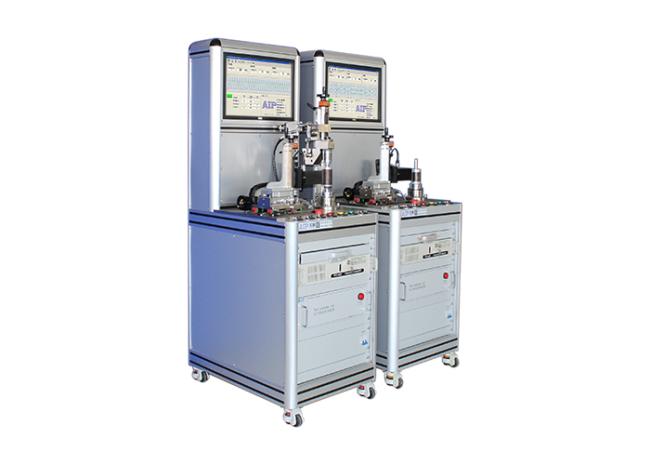

5. Machine picture
