10-50kg Bags Cement Filler Packing Plant Sand Packaging Cement Bagging Machine
10-50kg Bags Cement Filler Packing Plant Sand Packaging Cement Bagging Machine
Application of Automatic Valve Port Packing Machine
This kind of packing machine is widely used for filling and packing the dry powder materials, like: fly ash, coal powder, lime powder, mortar,cement and other materials.
Advantages of Automatic Valve Port Packing Machine
1.Automatic weighing and packing system, weighing accurately;
2.Small size and light quality, moving and installation conveniently;
3.Steady performance, easy to operate and maintenance;
4.High automation, labor-saving and increase efficiency.
Our valve packing machine (valve bag packing machine), the improved model of the latest development ,different from other factory production. We improve its most precise measurement sensing system, changed the way of lifting force sensor, the industry generally used, to the pressure sensing mode, making the packing machine life and accuracy greatly improved, Bag weight error from the original error of ± 0.5-1kg reach ± 0.25kg. Filling mouth also made design changes, adding a "gas returning nozzle" design, in the filling process the bag excess gas can be discharged, so that the filling process more smoothly.
Fair sand packing details:
Item | FMP-01 valve bag packing machine | ||
Weighing Scope | 10~60kg, adjustable on panel. | ||
Discharge Port Qty. | 1 pic | ||
Capacity | 8-12 t/h | ||
Motor Power | 3kw | ||
Measuring accuracy | ±0.2-0.4％ | ||
Bag weight qualified rate | >95% | ||
Weighing device | Micro-computer | ||
Overall dimension(mm) | 1200*670*1200 | ||
Air Requirements | 0.4-0.8MPa ( dry compressed air) | ||
Application Environment | Operating temperature | 0℃～50℃ | |
| Storage temperature | -20℃～60℃ | |
Main Features
1. The valve packing machine with dust collector can link to external filter, it also reduces dust in the environment and available to the protection of operator and environment.
2. Fast packing speed, accuracy stability
3. Accurate weighing, stable performance, simple operation, good seal, reasonable structure, durable, small volume, light weight, convenient adjustment and maintenance, mechanical and electrical integration, save power. The machine can be used in packing both the cement powder and particulate material.

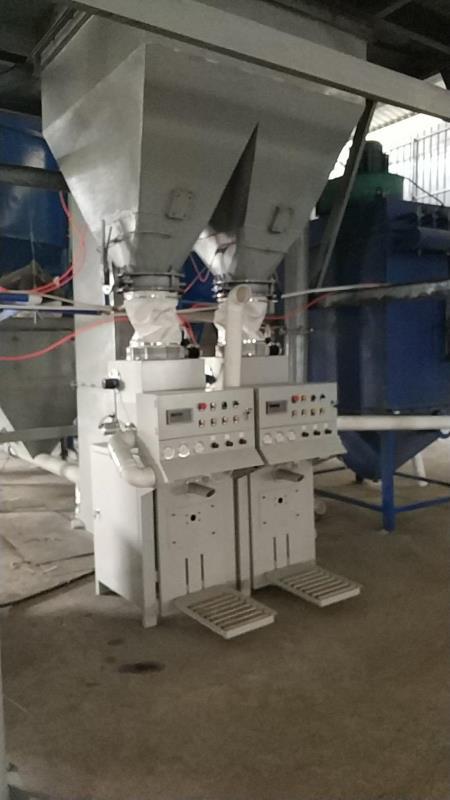

Worksite

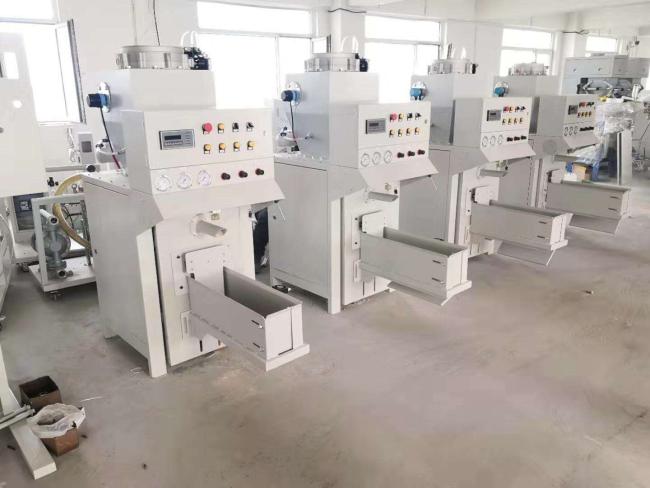

Product Description
The cement sand packing machine is a weighing packing machine for powder. It is designed for dry-mixed mortar, concrete, chemical engineering etc. The machine’s microcomputer system adopt industrial grade components and STM process.
Working Principle of Automatic Valve Port Packing Machine
The automatic weighing and packing machine receives the weight of analog signal by gauge and sensor and convert to figure signal, to control contactor and solenoid vale by relay switching signal to achieve the motor rotation stop and air cylinder operation.
The discharge principle is use high-speed rotation of the power head paddles make the material quickly set aside from the discharge port, the internal air blown inside the power head form a high pressure and puff away materials to help paddles disperse the material.
