500mm Wide 171 Pitch Chain On Black Excavator Rubber And Steel Rubber Pads
500-171 Tracked Pad Rubber Pad for Excavators
Specifications

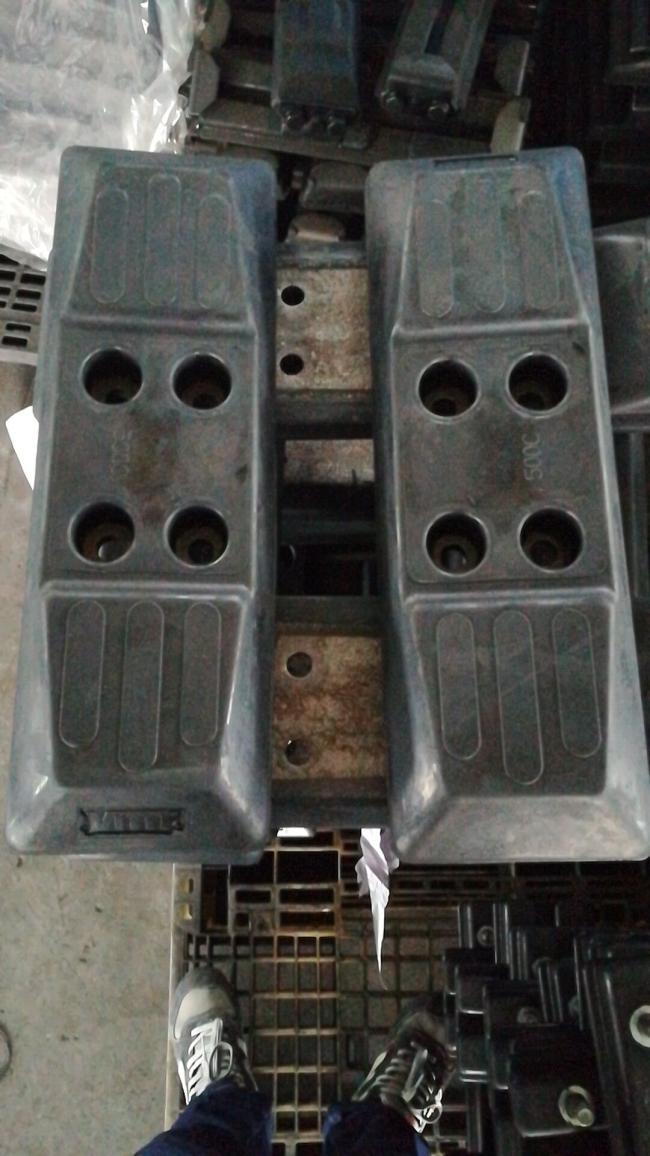

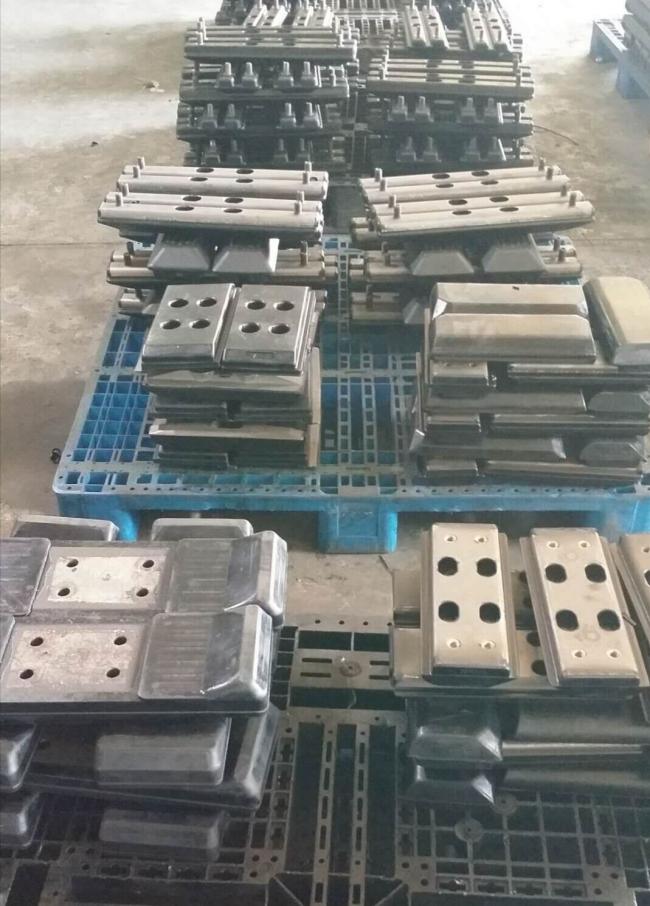

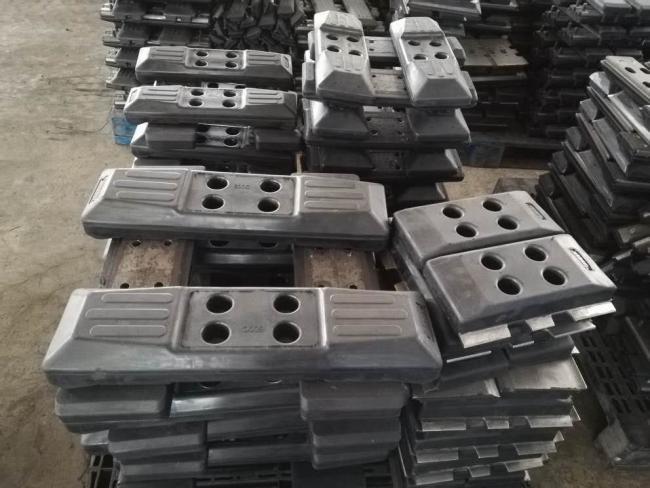

Product Pictures
Characteristics
ABOUT RUBBER PAD
Materials are specifically selected to give:
FEATURES
2.Labor Cost Savings
3.Double Roles
4.Easy Attaching/Detaching
5.Saving in Maintenance and Management Cost
6.Good Safety and Stability
7.Larger Digging and Hosting Power
8.Noise Reduction
9.Smoother operation and reduced vibration
Rubber pad type
| 1. Bolt-on: Work if your existing steel pads have pre-drilled holes |
| 2. Clip-on: Use clips that wrap around the pad and work with most styles of pads. |

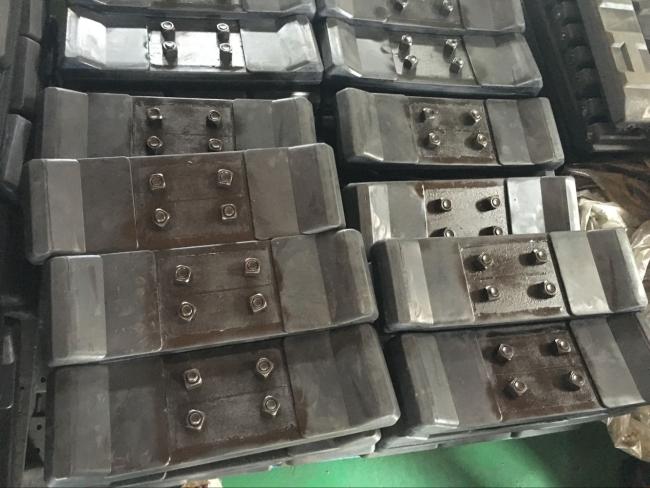

| 3. Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved. |
| Bolt-on | ||||||||
| Type | Pitch | h | D | d | Bolt | L | W | H |
| 230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 |
| 230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 |
| 250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 |
| 300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 |
| 300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 |
| 350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 |
| 350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 |
| 350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 |
| 350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 |
| 350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 |
| 380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 |
| 400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 |
| 400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 |
| 400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 |
| 400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 |
| 450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 |
| 450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 |
| 450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 |
| 500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 |
| 500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 |
| 600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 |
| 260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | |
| 260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | |
| 260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | |
| 300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | |
| 300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | |
| 350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 |
| 400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | |
| 450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | |
| 200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | |
| 305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | |
| 355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | |
| 455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | |
| 300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 |
| 300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 |
| 320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 |
| 320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 |

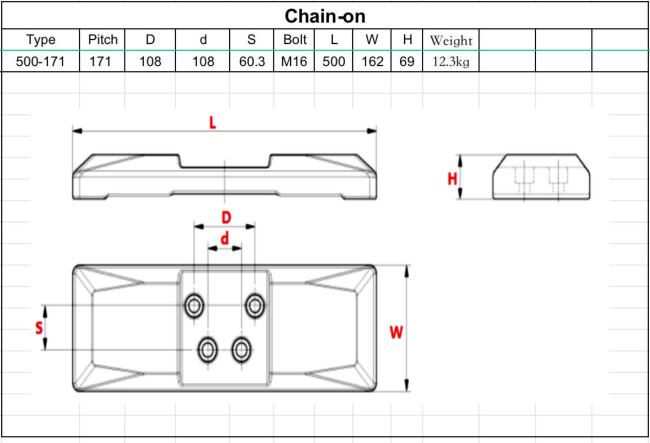

| Chain-on | ||||||||
| Type | Pitch | D | d | S | Bolt | L | W | H |
| 300C | 135 | 144 | 116 | 22 | M12 | 300 | 95 | 45 |
| 400C | 135 | 94 | 64 | 46 | M12 | 400 | 125 | 52 |
| 400CA | 135 | 99 | 72 | 43.5 | M12 | 400 | 125 | 52 |
| 400CK | 135 | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 |
| 400CB | 135 | 104 | 80 | 46 | M12 | 400 | 125 | 52 |
| 400CD | 135 | 110 | 80 | 46 | M12 | 400 | 125 | 52 |
| 400CV | 135 | 106 | 76 | 46 | M12 | 400 | 125 | 52 |
| 400CK | 140 | 80 | 80 | 52 | M12 | 400 | 125 | 52 |
| 400CW | 140 | 86 | 86 | 52 | M12 | 400 | 125 | 52 |
| 450CN | 140 | 83 | 83 | 52 | M12 | 450 | 125 | 52 |
| 450CW | 140 | 86 | 86 | 52 | M12 | 450 | 125 | 52 |
| 450CA | 135 | 99 | 72 | 43.5 | M12 | 450 | 125 | 52 |
| 450CB | 154 | 90 | 90 | 46.3 | M14 | 450 | 146 | 55 |
| 450CD | 154 | 90 | 90 | 55 | M14 | 450 | 146 | 55 |
| 450CS | 154 | 73 | 73 | 57 | M14 | 450 | 146 | 55 |
| 450C | 154 | 89 | 73 | 57 | M14 | 450 | 146 | 55 |
| 500CW | 135 | 104 | 80 | 46 | M12 | 500 | 125 | 52 |
| 500CB | 175 | 102.4 | 86.4 | 57 | M16 | 500 | 162 | 69 |
| 500C | 171 | 108 | 108 | 60.4 | M16 | 500 | 162 | 69 |
| 500CS | 171 | 104 | 88 | 58 | M16 | 500 | 162 | 69 |
| 500CA | 190 | 160.4 | 124.4 | 62 | M20 | 500 | 178 | 72 |
| 500CD | 190 | 155.6 | 119.6 | 69 | M20 | 500 | 178 | 72 |
| 600C | 171 | 108 | 108 | 60.4 | M16 | 600 | 162 | 69 |
| 600CD | 190 | 155.6 | 119.6 | 69 | M20 | 600 | 178 | 72 |
| 600CA | 190 | 160.4 | 124.4 | 62 | M20 | 600 | 178 | 72 |
| 600CB | 190 | 160.4 | 124.4 | 62 | M18 | 600 | 178 | 72 |
| 300 | 155 | 88.9 | 88.9 | 57.1 | M12 | 300 | 186 | 55 |
| 320 | 155 | 104 | 88.9 | 55 | M12 | 320 | 186 | 55 |
| Clip-on | |||||
| Type | Pitch | h | L | W | H |
| 380HD | 135 | 18 | 380 | 104 | 55 |
| 400HD | 135 | 18 | 400 | 106 | 51 |
| 450HD | 135 | 18 | 450 | 106 | 51 |
| 450HW | 154 | 20 | 450 | 124 | 50 |
| 450HB | 175 | 26 | 450 | 127 | 68 |
| 500HD | 175 | 26 | 500 | 127 | 68 |
| 500HW | 171 | 20 | 500 | 137 | 68 |
| 500HB | 175 | 18 | 500 | 127 | 60 |
| 600HD | 175 | 26 | 600 | 127 | 68 |
| 600HB | 190 | 26 | 600 | 137 | 71 |
| 600HA | 216 | 30 | 600 | 160 | 76 |
| 700HW | 171 | 20 | 700 | 137 | 63 |
| 700HD | 175 | 26 | 700 | 127 | 68 |
| 700HD | 190 | ||||
| 750HA | 216 | 30 | 750 | 160 | 76 |
| 800HD | 190 | 26 | 800 | 137 | 70 |

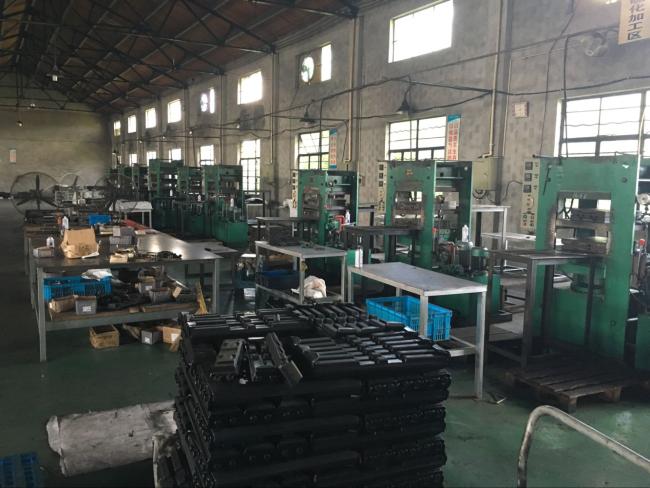

About US
Our company's rubber track pads have complete range of specifications, and have passed the ISO quality certification, and we can do best producing varieties of rubber track pads for customers. Besides, we meet any customer's needs in production capacity. We have one perfect teem for professional procurement, design, production, quality control and after-sales , we satisfy customer demands by innovative products, impeccable quality and sincere friendly service.
We will, as always, adhere to the 'customer first, integrity and innovation, win-win cooperation, people-oriented' concept of enterprise development; our working guidelines are to meet customer needs and interests including high quality products and honest, reliable, full-professional services .We are your reliable supplier of rubber track pads.
