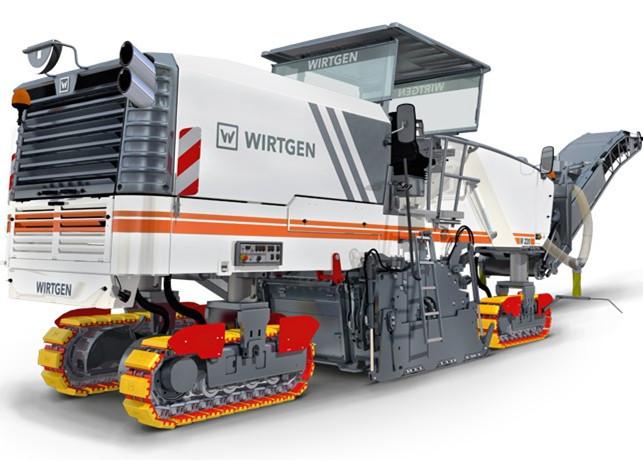

Red Color Paver Track Pads Wear Resistant Chamfer Design For Milling Machine
2. Split type design. When the rubber pad is worn out, we only need to change the rubber pad. The steel board is strong and need no maintaince, saving money for steel board every time when a new one is needed.
3. Chamfer design, enclosed design and back lock design. All special designs help to decrease the risk of foreign body cutting into rubber or damaging rubber and increase the serving life.
4. We can offer almost every type of track pad that is currently active on market. So if you don't see what you need in our description or in the picture, contact us directly to get professional service.
|
Applicable machines
|
ABG,Volvo,Vogele,Dynapac,Demag
|
|
Material
|
Steel and rubber
|
|
Installation position
|
Asphalt paver
|
|
Specification
|
Wear resistant parts
|

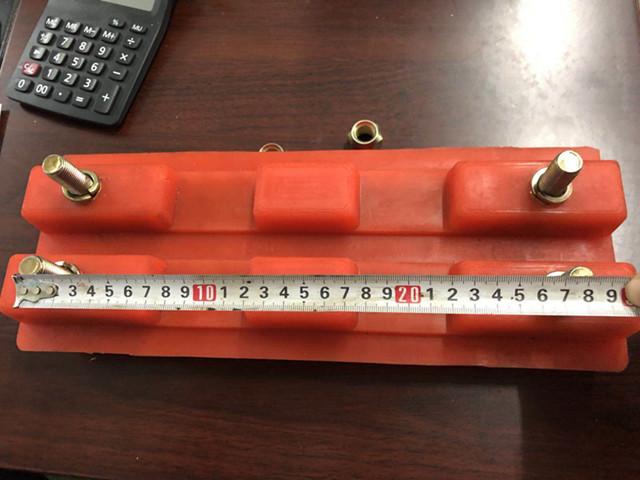

Polyurethane Track Pad/Track Shoe
Poly track pad adopts new and special polyurethane synthetic materia,with a 30% increase in the polyurethane content, prolong the service life, high tensile strength. Crawler board design using small bevel edge down, can avoid being kerbstone damaged and improving tensile strength.Tilt led to performance optimization.In any harsh field environment,always can reliably provide a steady stream of driving force.
Key Advantages
Longer-Life: Superior abrasion resistance
Fewer Change-Outs: Reduce downtime
Quick Installation: Bolt-on design is versatile and easy to install
Make it Your Own: Color and other customizations available
Poly / Rubber Pad types: Bolt on Type, Clip on Type and chain on Type and Special Poly/ Rubber Pad.
| Bolt-on | ||||||||
| Type | Pitch | h | D | d | Bolt | L | W | H |
| 230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 |
| 230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 |
| 250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 |
| 300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 |
| 300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 |
| 350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 |
| 350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 |
| 350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 |
| 350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 |
| 350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 |
| 380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 |
| 400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 |
| 400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 |
| 400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 |
| 400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 |
| 450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 |
| 450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 |
| 450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 |
| 500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 |
| 500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 |
| 600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 |
| 260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | |
| 260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | |
| 260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | |
| 300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | |
| 300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | |
| 350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 |
| 400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | |
| 450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | |
| 200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | |
| 305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | |
| 355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | |
| 455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | |
| 300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 |
| 300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 |
| 320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 |
| 320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 |
