600mm Width Crawler Undercarriage Systems High Speed With 55 - 60hrc Hardness

Price Negotiable

Price: Shanghai Puyi Industrial Co., Ltd

MOQ: 1

Delivery Time: 10-20 days

Brand: POOYERT

Product Description

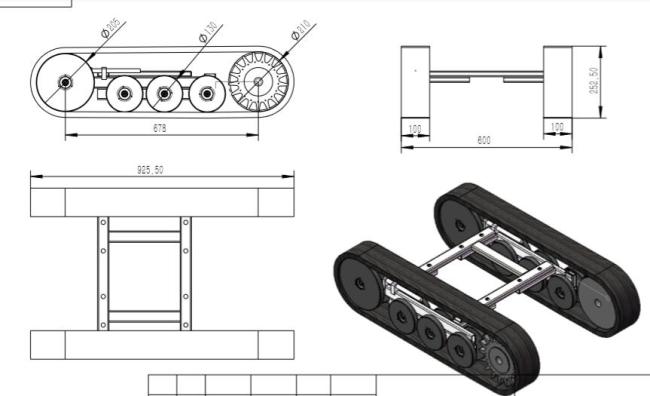

600mm width robot platform DP-XCL-100 (1) with high speed for all terra

Technical data

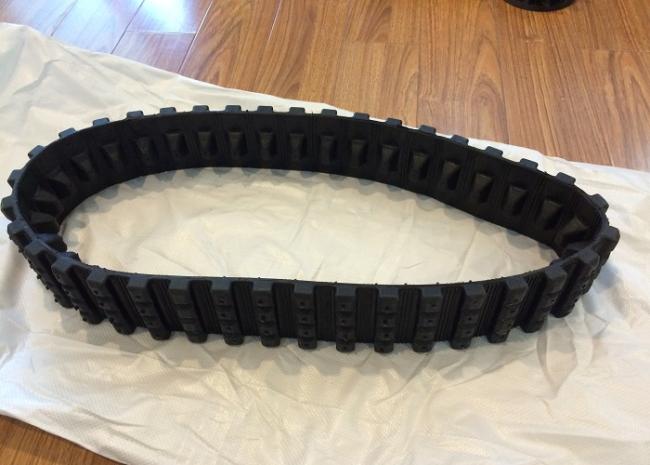

Rubber tracks for DP-XCL-100(1)

Undercarriage parts construction machinery

Material: High quality carbon steel / rubber

Process: Casting / Forging, Machining, Heatreatment, assembly

Hardness: 55 - 60HRC

Hardness depth: 6-11mm

Electronic control system

Including: motor & retarding system, control system, remote control

Other size chassis

Large Size Rubber Track Undercarriage
Model	Length	Width	Height	Sprocket Diameter	Rubber Track Model/Width	Rubber Track Link	Weight	load-bearing Weight	Stent
DP-DXAL-400	4100 /3800mm	1800mm	1900mm	650mm	MD-400/400mm	112	2388KG	4 T	I-Steel Stent
DP-GDL-620	4120mm	620mm	910mm	650mm	BV-206/620mm	91	2.5 T	10 T	I-Steel Stent
DP-SZHK-620	4150mm	2820mm	920mm	607.52mm	BV-206/620mm	96	2744Kg	8T	I-Steel Stent
DP-TK-560	5600mm	2800mm	1100mm	600mm	TK-560/560MM	80	3000KG	10T	I-Steel Stent
Middle Size Rubber Track Undercarriage (320-400mm)
Model	Length	Width	Height	Sprocket Diameter	Rubber Track Model/Width	Rubber Track Link	Weight	Load-bearing Weight	Stent
DP-ZLT-320	1990mm	1400mm	470mm	380mm	KD-320/320mm	50	639.5KG	2.5Tons	Square Tube Brackets
DP-CFHF-320	1860mm	1500mm	630mm	504.18mm	KD-320/320mm	43	1149kg	2.5Tons	Square Tube Brackets
DP-LPT-320	2000mm	1450mm	628mm	508mm	KD-320/320mm	54	800KG	2.5T	Square Tube Brackets
DP-GHG-320	2200mm	1700mm	490mm	450mm	WD-320	51	610kg	3T	Square Tube Brackets
DP-LYDX-320	2250mm	1850mm	1850mm	380mm	KD-320/320mm	82	1687KG	3Tons	Square Tube Brackets
DP-AQZ-320	2300mm	1520mm	680mm	312mm	KD-320/320mm	59	691.5kg	3T	I-Steel Stent
DP-NY-320	2250mm	2300mm	620mm	461mm	KD-320/320mm	56	517kg With Motor	3T	I-Steel Stent
DP-GA-320	2300mm	1500mm	560mm	388mm	KD-320/320mm	57	637KG	3T	I-Steel Stent
DP-AX-320	2130mm	1430mm	685mm /600mm	220mm	KD-320/320mm	54	700KG	3Tons	I-Steel Stent
DP-TDCQ-320	3000mm	2045mm	670mm	312mm	KD-320/320mm	75	1090KG	4Tons	Square Tube Brackets
DP-KD-320	3000mm	2300mm	620mm	461mm	KD-320/320mm	92	350Kg with motor	4T	Square Tube Brackets
DP-KL-320	3000MM	1450MM	495/590MM	318MM	KD-320/320mm	70	950Kg	4Tons	Square Tube Brackets
DP-CQ-320	3000MM	1800MM	950MM	250mm	KD-320/320mm	138	800kg	4Tons	Square Tube Brackets
DP-HA-320	3880mm	2600mm	580mm	350mm	QATV-320/320mm	1500kg	2.5T	4T	Square Tube Brackets
DP-LFG-400	2600mm	1600mm	630mm	562.77	YQZG-400/400mm	87	830Kg	4T	Square Tube Brackets
DP-DQ-400	2640MM	1800MM	660MM	380mm	YQZG-400/400mm	78	830Kg	4T	Square Tube Brackets
DP-CD-400	2770MM	1802MM	625MM	460mm	MD-400/400mm	82	907.5Kg	4T	I-Steel Stent
DP-QHWT-400	2690MM	1800MM	640MM	465mm	MD-400/400mm	80	874Kg	4T	I-Steel Stent
DP-LZL-400	3070mm	2100mm	730MM	660mm	MD-400/400mm	92	1292KG	4Tons	I-Steel Stent
DP-YQZG-400	3000mm	1800mm	765mm	727mm	YQZG-400/400mm	100	2.5Tons	6T	I-Steel Stent
DP-SZKW-400	3800mm	1810mm	805mm	460mm	YQZG-400/400mm	98	1638kg	5T	I-Steel Stent
DP-SZKW-400	4000mm	1810mm	800mm	540mm	YQZG-400/400mm	118	1964KG	5T	I-Steel Stent
DP-JY-400	4030mm	2040mm	810mm	450mm	YQZG-400/400mm	118	1638kg	5T	I-Steel Stent
