Automatic Feeding Biomass Furnace / Suspension Combustion Furnace With Remote Control
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 working days
Brand:
ZENVO
Product Description
Automatic feeding paddy husk suspension combustion furnace with remote control
Product Features:
1. Automatic fuel feeding and ash discharging.
2. High precision temperature control with deviation within 1℃
3. Higher efficiency and environmental friendliness with suspention combustion.
4. Higher dusting efficiency upon unique furnace construction.
5. Simple human-computure interaction with simply and safer operation.
6. Better operation experience from "internet of things" communication.
Product Features:
| Model | 5L-300KA | 5L-220KA | 5L-180KA | 5L-150KA | 5L-120KA | 5L-80KA | |
| Fuel Consumption(kg/h) | 0-880 | 0-680 | 0-580 | 0-470 | 0-375 | 0-235 | |
| Ash Discharge(kg/h) | 0-110 | 0-85 | 0-75 | 0-61 | 0-49 | 0-31 | |
| Support Power(kw) | 30.25 | 23.25 | 19.25 | 15.75 | 13.75 | 13.75 | |
| Dimension (L*H*W) (mm) | 11000*3900*7200 | 6500*3450*10565 | 6500*3450*10565 | 6500*3450*9485 | 6830*2940*10365 | 6830*2940*9145 | |
| Main Cabinet Dimension(L*H*W) | 6130*2800*9860 | 5250*2270*9860 | 5250*2270*9860 | 5250*2270*9860 | 4900*2100*9290 | 4900*2100*8030 | |
| Number of Dryers | 12 ton | 14~16 | 12~14 | 10~12 | 8~10 | 6~8 | 4~6 |
| 30 ton | 8~9 | 6~7 | 5~6 | 4~5 | 3~4 | 2~3 | |
| Weight (kw) | 28000 | 21200 | 19500 | 17800 | 15500 | 13500 | |
| Combustion Type | Suspension Combustion | ||||||
| Heating Type | Indirect Heating | ||||||
| Fuel | Paddy husk, wood sawdust | ||||||
| Fuel feeding | Automatic | ||||||
| Ash Discharging | Automatic | ||||||
| Dust Removal | Cyclone | ||||||
| Control System | Micro-computer with touch screen; Dynamic display of operation parameters; High precision temperature control with VFD | ||||||
| Safety Device | Protection of shortcut, over relay and under voltage; automatic failure warning and shut down; furnace over pressure protection | ||||||

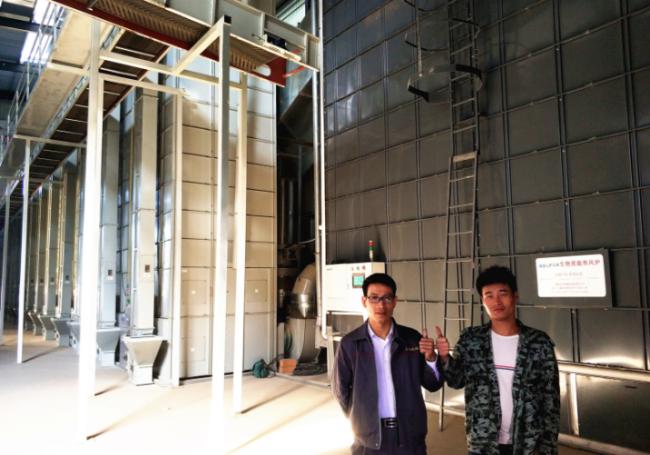

At Customer Site:
