Marine Offshore Platform Engineering Or Drilling Rig Boat Towing Hydraulic Winch
Marine Offshore Platform Engineering Or Drilling Rig Boat Towing Hydraulic Winch
Product review:
| Product name | industry marine winch ,wire rope drum windlass ,engineering winch |
| Design | groove drum |
| Sling type | cable or wire |
| Direction ratation | Left or right |
| Power | hydraulic or electric |
| Colour | red or require |
| Brake | automatic safe fail brake |
| Rope capacity: | 100-1000m |
| Power | Electric or Hydraulic |
| Application | Offshore platform,well logging,oil drilling rig,constructiong ,Marine ,towring ,hoist engineering winch |
Parameter :Can be design as require or suggest suitable as working condition
| Model |
Layer plly force (T) |
Rope speed | Drum bottom diameter | Difference of working pressures(Mpa) | Rope capaticty(mm) | Diameter of steel cable(mm) | Model of power |
| LBSOF1-10 | 30 | 0-35 | 305 | 15.9 | 65 | 15 | XH2-420 D51 |
| LBSOF1-20 | 70 | 0-40 | 350 | 16.5 | 80 | 18 | XH3-900 D240 101 |
| LBSOF1-30 | 80 | 0-40 | 470 | 15.6 | 100 | 24 | XH5-1800 D240101 |
| LBSOF1-40 | 110 | 0-40 | 490 | 17 | 120 | 28 | XH6-2000 D240 101 |
| LBS0F1-50 | 120 | 0-30 | 600 | 17.3 | 175 | 30 | XH6-3000 D240101 |
Product advantage:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used grooved drum) and oil equipment accessories.

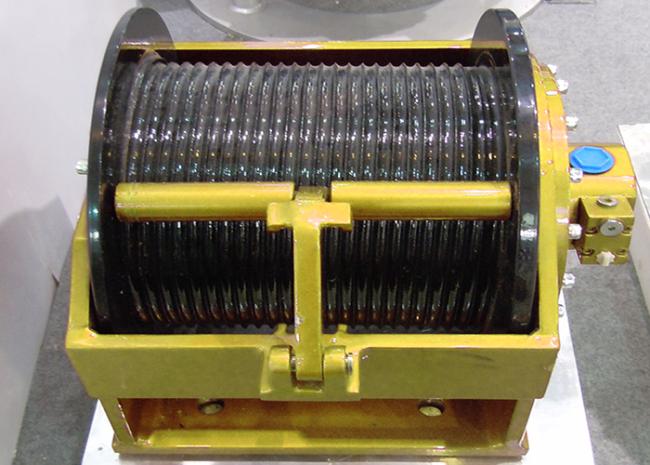

LBS grooved winch drum knowledge:
- Each one circle layer of the grooved drum has two parallel groove and two groove section
- Make the cable even smooth ;load even distribution
- Prevent cross &mess in cable rolling working happening Lower the cable dama
Product specification:
Custom-made (according to actual )
The winches consist of hydraulic motor with brake, planetary gearbox, drum and frame.
Product application:
It is widely used in port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
Product service:
Top quality with competitive price.
Safe and reliable function.
Highly efficient, constant operating torque motor.
Smooth running over the entire speed range.
