Gray Stainless Steel LBS Grooved Drums Mounted on Lifting Equipment/Winch
Title:Gray Stainless Steel LBS Grooved Drums Mounted on Lifting Equipment/Winch
Rapid introduction:
Now we can maufacture all size of drums. Its diamteter range is from 30mm-2000mm. Length range is from 30mm-10000mm.
customization need to provide the below information:
| Drum diameter | Drum length | Winding layers | Rotation direction | Cable speed |
Pull force(KN) |
|
350mm |
500mm | 4 layers | left or right | 0-25m/min | 50kn |
| 600mm | 650mm | 4 layers | left or right |
0-25m/min | 60kn |
| 680mm | 780mm | 3 layers | left or right | 0-25m/min | 70kn |
| 750mm | 880mm | 5 layers | left or right | 0-25m/min | 80kn |
| 800mm | 1100mm | 5 layers | left or right | 0-25m/min | 100kn |

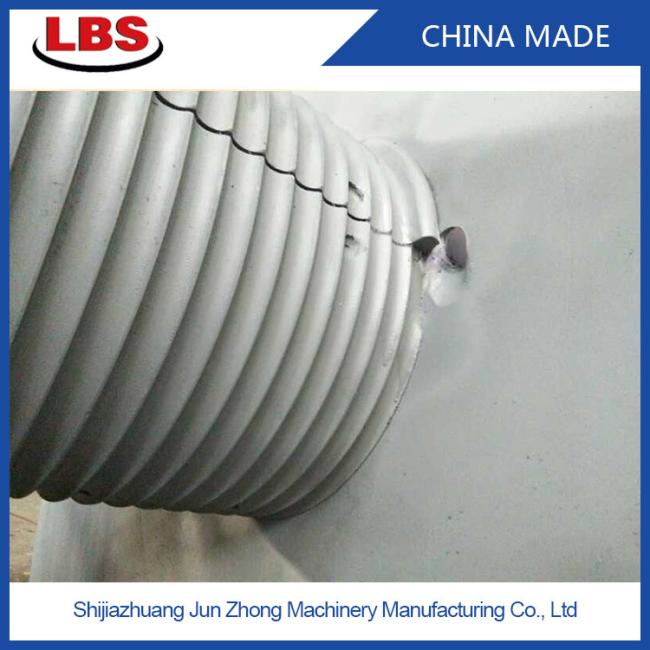

Compared with cordless groove(smooth)drum and helical groove drum,LBS groove has obvious advantages in multilayer spooling.
Advantages:
1. Ensure your wire rope spools smoothly onto and off the rope drum under total control.
2. Make wire rope spooling uniform distribution of load between each layer.
3. Prevent cross & mess in the process of wire spooling.
4. Lower the rope damage and increase the service life of wire rope by more than 500%
Related products:
grooved sleeves(shell)
The whole grooved drum is divided into the upper and lower
parts,which we call them split-sleeves. The sleeves are available a smooth drum or helical drums.
